U TYPE THROW-OVER INFLATABLE LIFE RAFT I (ISO9650-1)
U TYPE THROW-OVER INFLATABLE LIFE RAFT I (ISO9650-1)

U TYPE THROW-OVER INFLATABLE LIFE RAFT I (ISO9650-1)

Material:Rubber Standard: SOLAS(74/96), LSA, MSC Color:Orange Max.Storage Height:18~36m Temperature Inflating Range: -30 To 65 Degree Usage:Suitable For Vessels Sailing On International Voyages


+8613355655259
+86551-68997282
Products Introduction

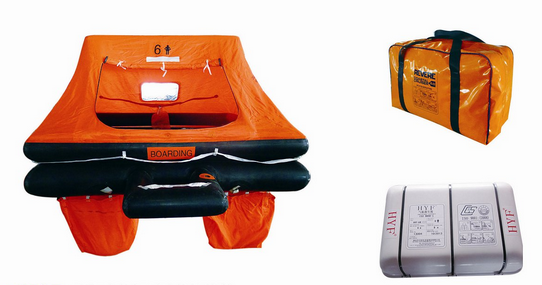

U TYPE THROW-OVER INFLATABLE LIFE RAFT I (ISO9650-1)


Description:


It meets the requirement of "Regulation for the statutory surveys of ships and offshore installations", "Technical regulations for Statutory surveys of sea-going ships engaged on international voyages(2004)" of P. R. C. And SOLAS 74/96 amendment, LSA and MSC. 81(70)Amendmentsfor Testing Of Life-saving Appliance; MSC. 295(87); MSC. 323(89);

After throw-over from ship, the life raft can be inflated and opened automatically. If the ship sinks very fast and the life raft cannot be thrown-over, the raft still can float up from water under the action of Hydrostatic Release Unit and can be inflated and opened automatically


Specification:


Type

Capacity(P)

Weight(kg)

Container   Dimension(mm)

A Pack

B Pack

A Pack

B Pack

HYF-U4(I)

4

47

43

760x530x335

750x480x325

HYF-U6(I)

6

55

49

770x540x340

760x530x335

HYF-U8(I)

8

66

58

825x575x350

770x540x340

HYF-U10(I)

10

75

65

920x575x340

825x575x350

HYF-U12(I)

12

85

75

956x616x385

920x575x340

Type

Capacity(P)

Weight(kg)

Valise   Dimension(mm)

A Pack

B Pack

A Pack

B Pack

HYF-U4(I)

4

41

32

710x500x280

660x500x280

HYF-U6(I)

6

48

35

810x500x280

710x500x280

HYF-U8(I)

8

57

40

910x500x280

810x500x280


Application

The liferafts are applicable to small craft with the length less than 24m

Product standard

ISO 9650-1: small craft-inflatable   liferaft.

Max Storage   height

6m

Certificate

CCS/GL


Service:



We provide drawing design and manufacturing.

Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.

Quick delivery.

Quality products.

Served in marine industry more than twenty years.

Enjoyed excellent reputation from global customers.
