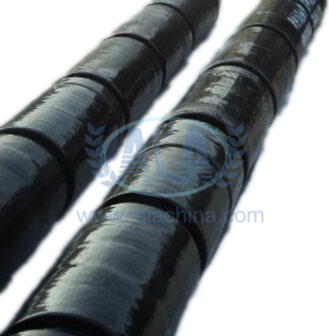

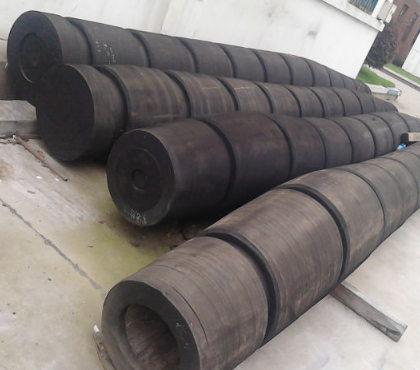

TUG TYPE RUBBER FENDER
TUG TYPE RUBBER FENDER
Product showing:
Description:
It has the functions of rubber fender and higher durahility than the steel ladder. It is unnecessary to be concealed and can be installed like a fender for people to go to up and down. It is flexible,anti-corrosion and anti-corrosion. Easy installation and convenient maintenance.

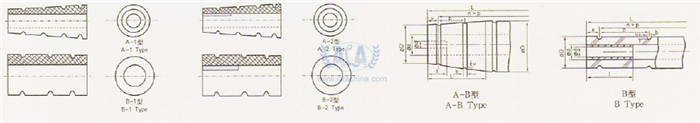

Specification:
A-B Type series | Unit:mm | |||||||||||
norms and size | a | p | n | b | c | ΦD | ΦD1 | Φd | Φd1 | L | I | I1 |
Φ500xΦ400xΦ250xΦ100xΦ16000 | 500 | 1000 | 15 | 60 | 40 | 500 | 400 | 250 | 100 | 16000 | 450 | 1000 |
Φ700xΦ600xΦ350xΦ100xΦ14000 | 370 | 780 | 17 | 60 | 40 | 700 | 600 | 350 | 100 | 14000 | 450 | 1000 |
B Type series | ||||||
norms and size | b | c | ΦD | Φd | Φd1 | I |
Φ300xΦ150xL | 50 | 25 | 300 | 150 | ||
Φ300xΦ100xL | 50 | 25 | 300 | 100 | ||
Φ400xΦ200xL | 50 | 35 | 400 | 200 | 300 | |
Φ400xΦ150xL | 50 | 35 | 400 | 150 | 100 | |
Φ400xΦ100xL | 50 | 35 | 400 | 100 | ||
Φ500xΦ250xL | 60 | 40 | 500 | 250 | 350 | |
Φ500xΦ220xL | 60 | 40 | 500 | 220 | 100 | 350 |
Φ500xΦ200xL | 60 | 40 | 500 | 200 | 100 | 350 |
Φ500xΦ150xL | 60 | 40 | 500 | 150 | 100 | |
Φ500xΦ100xL | 60 | 40 | 500 | 100 | ||
Φ600xΦ300xL | 60 | 35 | 600 | 300 | 400 | |
Φ600xΦ250xL | 60 | 50 | 600 | 250 | 100 | 400 |
Φ600xΦ220xL | 60 | 50 | 600 | 220 | 100 | 400 |
Φ600xΦ200xL | 60 | 50 | 600 | 200 | 100 | 400 |
Φ600xΦ150xL | 60 | 50 | 600 | 150 | 100 | |
Φ600xΦ100xL | 60 | 50 | 600 | 100 | ||
Φ700xΦ350xL | 60 | 50 | 700 | 350 | 450 | |
Unit:mm | ||||||
norms and size | b | c | ΦD | Φd | Φd1 | I |
Φ700xΦ300xL | 60 | 50 | 700 | 300 | 100 | 400 |
Φ700xΦ250xL | 60 | 50 | 700 | 250 | 100 | 400 |
Φ700xΦ220xL | 60 | 50 | 700 | 220 | 100 | 400 |
Φ700xΦ200xL | 60 | 50 | 700 | 200 | 100 | 400 |
Φ700xΦ150xL | 60 | 50 | 700 | 150 | 100 | |
Φ800xΦ400xL | 70 | 50 | 800 | 400 | 450 | |
Φ800xΦ350xL | 70 | 60 | 800 | 350 | 100 | 450 |
Φ800xΦ300xL | 70 | 60 | 800 | 300 | 100 | 450 |
Φ800xΦ250xL | 70 | 60 | 800 | 250 | 100 | 450 |
Φ800xΦ220xL | 70 | 60 | 800 | 220 | 100 | 400 |
Φ800xΦ200xL | 70 | 60 | 800 | 200 | 100 | 400 |
Φ800xΦ150xL | 70 | 60 | 800 | 150 | 100 | |
Φ900xΦ450xL | 70 | 50 | 900 | 450 | 500 | |
Φ900xΦ400xL | 70 | 50 | 900 | 400 | 100 | 500 |
Φ900xΦ350xL | 70 | 50 | 900 | 350 | 100 | 500 |
Φ900xΦ220xL | 70 | 50 | 900 | 220 | 100 | |
Notic: a.p x n-L can be produced according to consumer`s demands/options, a=100-600mm,p=350-1200mm,L=3000-26000mm. n generally means odd number, also can use even number. |
Application:
Tug fender is typically mounted on the bow,stern and both sides of a towboat or push boat.It can effectively counterpart the impact force between the ship and the dock and that between ships.hence,it is ideal for preventing boats as well as dock.
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
