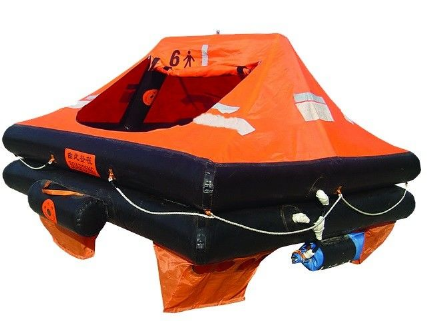

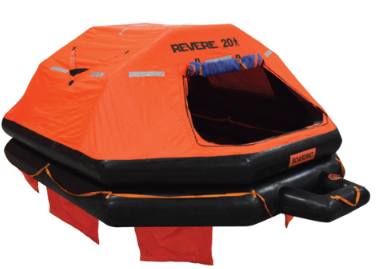

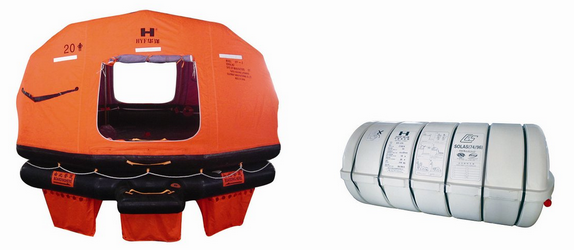

THROW-OVER SELF-RIGHTING INFLATABLE LIFE RAFT (SOLAS)
THROW-OVER SELF-RIGHTING INFLATABLE LIFE RAFT (SOLAS)
Description:
It meets the China MSA-”Regulations for the Statutory Surveys of Ships and offshore Installations
—Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged inDomestic Voyages”2004,and it’s 2008 Amendments,Part4, Ch.3.and SOLAS(74/96),LSA,MSC.81(70), MSC.226(82), MSC.218(82), MSC.293(87),ISO15738(2002).
Max. Storage Height: 18~36m
Equipment Outfit: SOLAS AB PACK
Specification:
Type | Capacity(P) | Weight≤(kg) | Container Dimension(mm) | ||
A Pack | B Pack | A Pack | B Pack | ||
HYF-Z6 | 6 | 83 | 68 | 1260x650 | 1120x630 |
HYF-Z10 | 10 | 119 | 93 | 1320x680 | 1260x650 |
HYF-Z12 | 12 | 124 | 94 | 1320x680 | 1260x650 |
HYF-Z15 | 15 | 154 | 117 | 1480x740 | 1380x700 |
HYF-Z16 | 16 | 156 | 117 | 1480x740 | 1380x700 |
HYF-Z20 | 20 | 168 | 121 | 1520x750 | 1480x740 |
HYF-Z25 | 25 | 194 | 136 | 1600x780 | 1520x750 |
HYF-Z30 | 30 | 222 | 159 | 1600x780 | 1520x750 |
HYF-Z35 | 35 | 241 | 168 | 1680x800 | 1600x780 |
HYF-Z37 | 37 | 271 | 184 | 1680x800 | 1600x780 |
Application | The liferafts are applicable to vessels navigation in international(class 1) or domestic zone and also used for all kinds of offshore facility lifesaving. |
Product standard | The international convention for the safety of life at sea, SOLAS 1974,1996 Amendment and MSC.216(82); MSC.48(66). The international life-saving appliance(LSA) code; MSC.81(70) amendents to be revised recommendation on testing of life-saving appliance; MSC.218(82),MSC.293(87) amendments to the international life-saving appliance(LSA) code; MSC.226(82); MSC.295(87); MSC.323(89) amendments to be revised recommendation on testing of life-saving appliances, as amended. |
Emergency pack type | A pack or B pack |
Max Storage height | 36m |
Certificate | CCS/GL/EC/RS |
