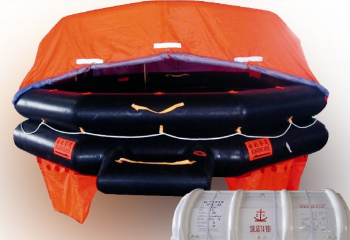

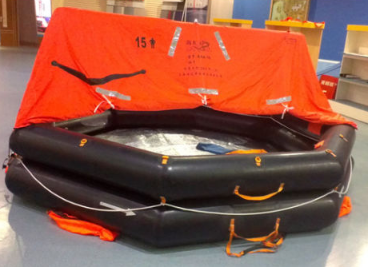

THROW-OVER INFLATABLE LIFE RAFT (SOLAS)
THROW-OVER INFLATABLE LIFE RAFT (SOLAS)
Description:
- Type:man throw over board life raft
- Suitable for installing in the vessels sailing on the internatiall voyages.
- Type:ATOB-6/8/10/12/15/16/20/25/30/35
- Max.Storage Height:18~50cm
- Equipment Outfit:SOLAS A/B pack
Specification:
Type | Capacity(P) | Weight≤(kg) | Container Dimension(mm) | ||
A Pack | B Pack | A Pack | B Pack | ||
HYF-A6 | 6 | 82 | 69 | 1120x630 | 1120x630 |
HYF-A8 | 8 | 90 | 72 | 1120x630 | 1120x630 |
HYF-A10 | 10 | 99 | 77 | 1260x650 | 1120x630 |
HYF-A12 | 12 | 113 | 87 | 1320x680 | 1260x650 |
HYF-A15 | 15 | 128 | 95 | 1380x700 | 1320x680 |
HYF-A16 | 16 | 131 | 96 | 1380x770 | 1320x680 |
HYF-A20 | 20 | 170 | 127 | 1480x740 | 1380x700 |
HYF-A25 | 25 | 184 | 130 | 1520x750 | 1480x740 |
HYF-A30 | 30 | 216 | 174 | 1600x780 | 1520x750 |
HYF-A35 | 35 | 245 | 184 | 1680x800 | 1600x780 |
HYF-A36 | 36 | 292 | 208 | 1680x800 | 1600x780 |
HYF-A37 | 37 | 294 | 208 | 1680x800 | 1600x780 |
Application | The liferafts are applicable to vessels navigation in international(class 1) or domestic zone and also used for all kinds of offshore facility lifesaving. |
Product standard | The international convention for the safety of life at sea, SOLAS 1974,1996 Amendments; MSC.48(66). The international life-saving appliance(LSA) code; MSC.81(70) amendents to be revised recommendation on testing of life-saving appliance; MSC.218(82),MSC.293(87) amendments to the international life-saving appliance(LSA) code; MSC.226(82); MSC.295(87); MSC.323(89) amendments to be revised recommendation on testing of life-saving appliances, as amended. |
Emergency pack type | A pack or B pack |
Max Storage height | 36m |
Certificate | CCS/GL/EC/RS |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
