STEEL FIREPROOF DOOR
STEEL FIREPROOF DOOR

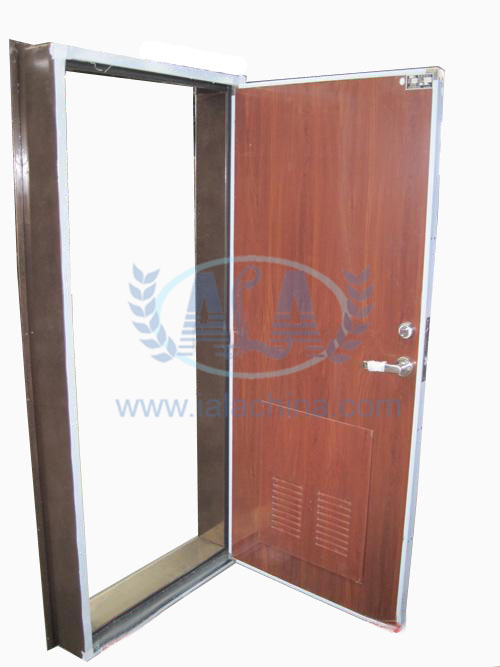

Product showing:
Description:
This is marine used fireproof door, installed in accommodation area. The steel fireproof door meets the fireproof requirements of SOLAS in 1974, corrected in 1983.We have the EC,CCS, ABS, NK, GL,CCS type approval certificate for the door.It can be used in passage way of fireproof area,bulkhead,casing wall of engine room and accommodations of ship.
Features:
China Steel Fireproof Door |
Standard: CB3234-84 |
The steel fireproof door meets the fireproof requirements of SOLAS in 1974, corrected in 1983. We have the EC type approval certificate for the door.It can be used in passage way of fireproof area,bulkhead, casing wall of engine room and accommodations of ship. |
Class:A60,A0,A30,B15,B0, B class is with emergency exit (kick-out panel) or vent louver. |
Color of the door can be selected by the customer. We have the color sample for your reference. |
Opening Direction: Left, Right, Outwards, Inwards. |
Specification:

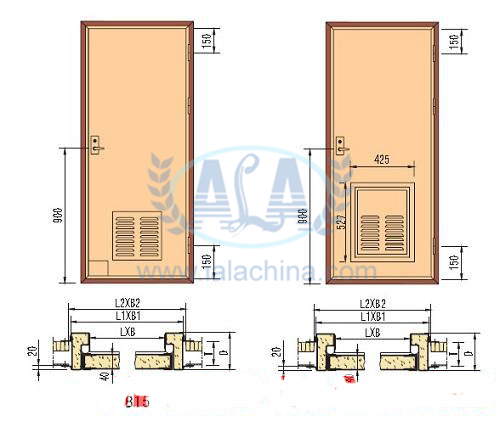

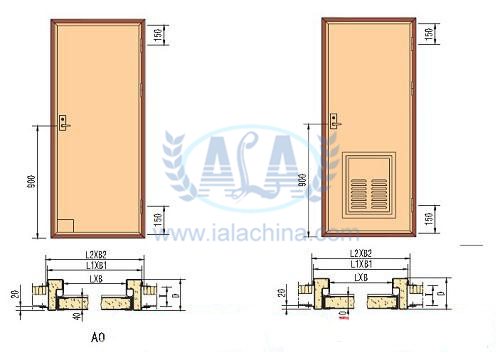

Main Size List(mm)
Class | Doorways SiZE | Frame Size | Opening Size of Wall | T | D |
LXB | L1XB1 | L2XB2 | Decided by the designer | T+40 | |
A | 1600X600 | 1693x693 | 1700x700 | ||
1600X650 | 1693X743 | 1700X750 | |||
1650X600 | 1693X793 | 1700X800 | |||
1650X700 | 1743X693 | 1750X750 | |||
1700X600 | 1793X693 | 1800X700 | |||
1700X650 | 1793X743 | 1800X750 | |||
1700X700 | 1793X793 | 1800X800 | |||
1800X600 | 1893X693 | 1900X700 | |||
1800X700 | 1893X793 | 1900X800 | |||
1800X800 | 1893X893 | 1900X900 | |||
1850X800 | 1943X893 | 1950X900 | |||
B | 1600X600 | 1664X680 | 1670X685 | ||
1600X650 | 1664X730 | 1670X735 | |||
1650X600 | 1714X680 | 1720X685 | |||
1650X700 | 1714X780 | 1720X785 | |||
1700X600 | 1764X680 | 1770X685 | |||
1700X650 | 1764X730 | 1770X735 | |||
1700X700 | 1764X780 | 1770X785 | |||
1800X600 | 1864X680 | 1870X685 | |||
1800X700 | 1864X780 | 1870X785 | |||
1800X800 | 1864X880 | 1870X885 | |||
1850X800 | 1914X880 | 1920X885 |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
