Reverse osmosis desalination multistage centrifugal pump(RDMCP)
Reverse osmosis desalination multistage centrifugal pump(RDMCP) just is the high-pressure pump which is ROD type used in desalination. “The research of ton membrane desalination key technology and equipment” is the eleventh five-year national science
+8613355655259
+86551-68997282
Products Introduction
Overview
Reverse osmosis desalination multistage centrifugal pump(RDMCP) just is the high-pressure pump which is ROD type used in desalination. “The research of ton membrane desalination key technology and equipment” is the eleventh five-year national science. For ton membrane desalination device parameters required, we propose a new type multi-stage and high-pressure pump with axial suction structure, and the successful development of a prototype machine for the first time applied to desalination demonstration projects has been got.It fills the blank of national membrane desalination domestic high-pressure pump.
Operation data
Medium | Seawater or salt water |
The maximum flow Q | Up to 900m3/h |
Head H | Up to 620 m |
Ps | Up to 1.2 MPa |
Pd | Up to 7.4 MPa |
The pump speed n | 3000 r/min |
Series of parameters
(T/Day) | (m3/h) | (m) | (kW) |
Handling capacity | Pump flow | Pump head | Pump Power |
2500 | 120 | 620 | 350 |
5000 | 280 | 620 | 630 |
10000 | 450 | 620 | 1120 |
20000 | 900 | 620 | 2000 |

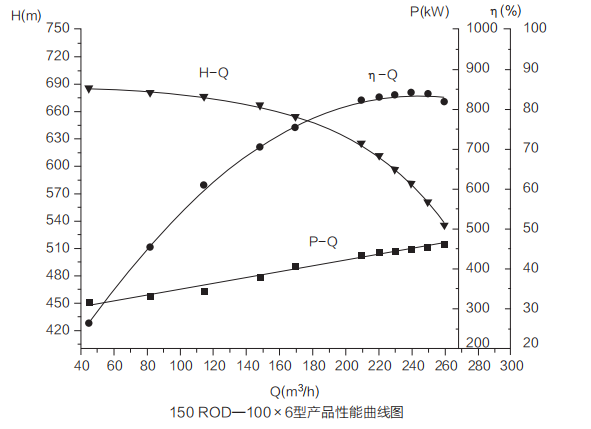

Performance curve
