ROLL TYPE RUBBER FENDER
ROLL TYPE RUBBER FENDER

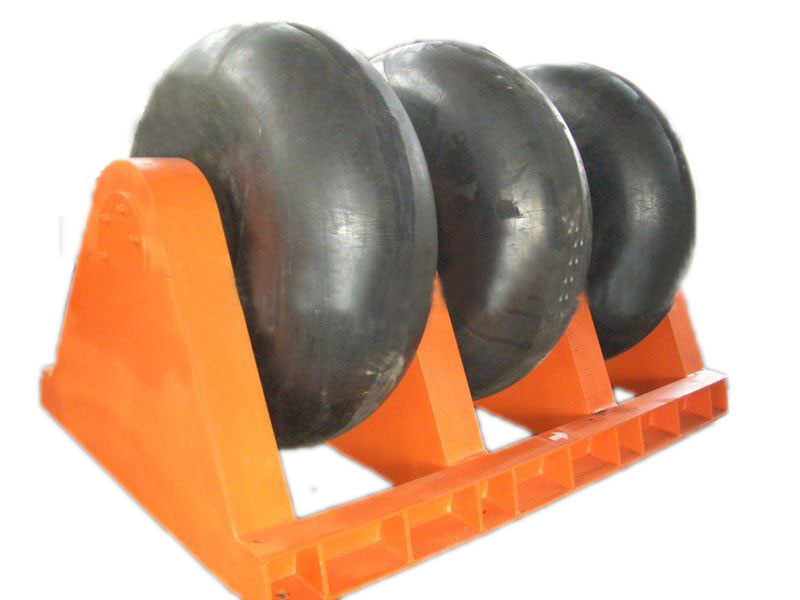

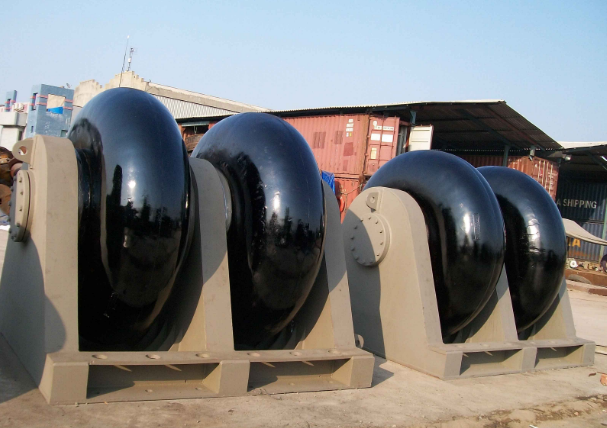

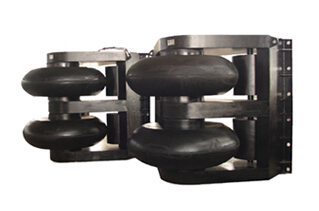

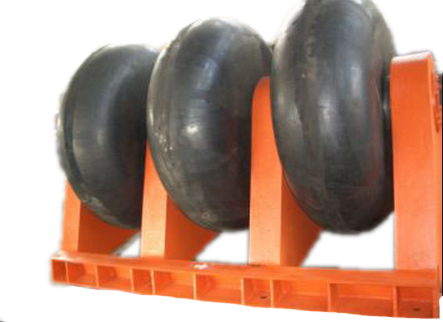

Product showing:
Description:
Low reaction force and high energy absorption. The fender performace is free from the influence of ship inclining and berthing. Aplicable for dock ,water lock,different limitation water chanel,and dock sticking out corner. It is mounted on a fixed axle supported by special frame .which will rotate following with the axle. It can roll with fender remove ,and generate a certain deformation
Specification:
Types | D1 | D2 | D3 | Notes | |||||
AxB(mm) | A | B | C | D | L1 | H | L2 | L3 | |
600x200 | 600 | 200 | 695 | 320 | 420 | 620 | 770 | 1120 | Products of other sizes can be manufactured upon user`s request. |
750x250 | 750 | 250 | 870 | 400 | 510 | 775 | 935 | 1360 | |
900x300 | 900 | 300 | 1040 | 480 | 610 | 930 | 1120 | 1630 | |
1200x400 | 1200 | 400 | 1380 | 640 | 820 | 1240 | 1500 | 2180 | |
1500x500 | 1500 | 500 | 1740 | 800 | 1010 | 1550 | 1850 | 2690 | |
1800x600 | 1800 | 600 | 2080 | 960 | 1210 | 1860 | 2215 | 3220 | |
2100x700 | 2100 | 700 | 2440 | 1155 | 1410 | 2205 | 2590 | 3770 | |
2400x800 | 2400 | 800 | 2770 | 1280 | 1610 | 2480 | 2950 | 4290 | |
2700x900 | 2700 | 900 | 3130 | 1440 | 1810 | 2790 | - | - | |
3000x1000 | 3000 | 1000 | 3480 | 1600 | 2010 | 3100 | - | - |
Application:
Roller Fenders are usually installed to guide ships in restricted spaces like walls of dry docks. They can also be used on corners and lock entrances where lower energies are needed. And with low reaction force and high energy absorption, the fender performance is free from the influence of ship inclining and berthing.
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
