MARINE PILOT CHAIR WITH RAIL
MARINE PILOT CHAIR WITH RAIL
Description:
1. Ergonomic design;
2. Adjustable backrest and headrest;
3. Seat height may be angle adjusted;
4. Seats can be moved back and forth;
5. Folding / angle-adjustable comfortable seat armrest;
6. Seat can rotated 360 degrees, multi-point positioning;
7. Foot pedal height adjustable / folding;
8. Column can be vertically lifting
Features:
Adjustable headrest; |
Backrest adjustment 45°; |
Strong lifting column/salt water resistant aluminium; |
Foldable/angle adjustable comfort armrests; |
Swivel-mechanism 360°; |
Foldable angle-adjustable footrest/swivels together with seat-top; |

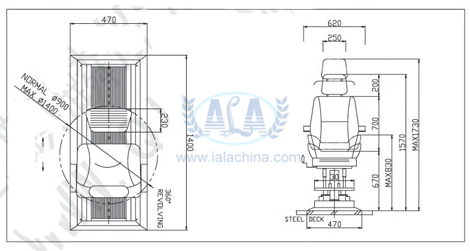

Specifications: |
Height: 1730mm; |
seat cushion width(standard): 500mm; |
depth: 900mm. |
Features |
1. Aluminum alloy pedestal with air operated lifting system |
2．Wire control guide rail type |
3. Meet the ergonomics design |
4. Seat movable on the strong slideway |
5. Adjustable backrest and headrest |
6. Seat height can be adjusted for angle |
7. Movable seat forward and back |
8. Foldable/angle adjustable comfort armrests |
9. Swivel-mechanism 360,Multi-point positioning |
10. Height adjustable/foldable footrest |
11.Strong lifting column/Saltwater resistant/shock absorber in column |
Material: |
1. The slide guide rail and positioning base : high strength of aluminum alloy. The Mosaic Bevel edge decorative: stainless steel material; |
2. Mobile base, lifting columns: the steel and Stainless steel products . |
3. Seat lifting tilted, and moved back and forth, back of a chair Angle adjustment :The steel structure; |
4. The seat back and seat cushion :steel inner core and PU cold foaming sponge synthesis, covered by leather or cloth art; |
5. Foot pedals :the steel inner core and Environmental rubber products synthesis; |
6. Air pressure lifting core components and Gas Spring : German import Stabilus; |
7. The chair face material is black high quality PU imitation leather, can also be |
Customized True Leather or fabric; Chair face shape and color Can be customized according to customer requirements; |
Standard Slide-style driving seat track length is 1.2 m, if need to lengthen, Can be customized according to customer requirements; |
Features: |
1. Square steel pillar pedestal with air operated lifting system. |
2. Wire control guide rail type |
3. Meet the ergonomics design |
4. Seat movable on the strong slideway |
5. Adjustable backrest and headrest |
6. Seat height can be adjusted for angle |
7. Movable seat forward and back |
8. Foldable/angle adjustable comfort armrests |
9. Swivel-mechanism 360,Multi-point positioning |
10. Height adjustable/foldable footrest |
11. Strong lifting column/Saltwater resistant/shock absorber in column |
Material: |
1. The slide guide rail and positioning base : steel. The Mosaic Bevel edge decorative: stainless steel material; |
2. Mobile base, lifting columns: the steel and Stainless steel products . |
3. Seat lifting tilted, and moved back and forth, back of a chair Angle adjustment :The steel structure; |
4. The seat back and seat cushion :steel inner core and PU cold foaming sponge synthesis, covered by leather or cloth art; |
5. Foot pedals :the steel inner core and Environmental rubber products synthesis; |
6. Air pressure lifting core components and Gas Spring : German import Stabilus; |
7.The chair face material is black high quality PU imitation leather, can also be customized true leather or fabric; Chair face shape and color Can be customized according to customer requirements; |
Standard Slide-style driving seat track length is 1.2 m, if need to lengthen, Can be customized according to customer requirements; |
Material:
| 1. The slide guide rail and positioning base : high strength of aluminum alloy. The Mosaic Bevel edge decorative: stainless steel material; |
| 2. Mobile base, lifting columns: the steel and Stainless steel products . |
| 3. Seat lifting tilted, and moved back and forth, back of a chair Angle adjustment :The steel structure; |
| 4. The seat back and seat cushion :steel inner core and PU cold foaming sponge synthesis, covered by leather or cloth art; |
| 5. Foot pedals :the steel inner core and Environmental rubber products synthesis; |
| 6. Air pressure lifting core components and Gas Spring : German import Stabilus; |
| 7. The chair face material is black high quality PU imitation leather, can also be customized True Leather or fabric; Chair face shape and color Can be customized according to customer requirements; |
| 8. Standard Slide-style driving seat track length is 1.2 m, if need to lengthen, Can be customized according to customer requirements; |
Function data:
1. Upper part of the seat can be moved back and forth of120mm,height adjustment60mm,seat inclination angle range of±12°;
2. Seat backrest with adjustable angle of 85°-150°,the headrest is adjusted up and down50mm,handrest multi-point positioning control;
3. The seat of pneumatic lifting regulating range0-150mm；
4. The seat can rotate360°and locked ,4-point positioningcontrol;
5. Seat rail slide in0-6000mmmobile,500mmrail width and depth28mm
6. Seat pedal can rotate90°and regression, upper and lower position adjusting range of0-50mm;
7. Seat can bear more than150FT.LBtorsion, reached AD grade standard;
-
