MARINE ALUMINUM QUICK ACTING WATERTIGHT DOOR WITH SINGLE LEVER
MARINE ALUMINUM QUICK ACTING WATERTIGHT DOOR WITH SINGLE LEVER
Product showing:
Description:
Hinged type marine door
- Watertight door
- Available in marine quality steel, stainless steel and aluminum materials
- High quality rubber gasket
- Options view port, door closer
- Right-angle or round corners

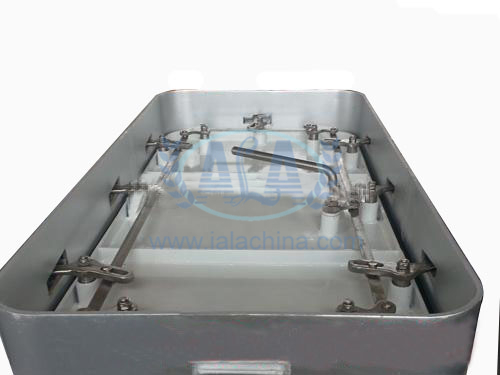

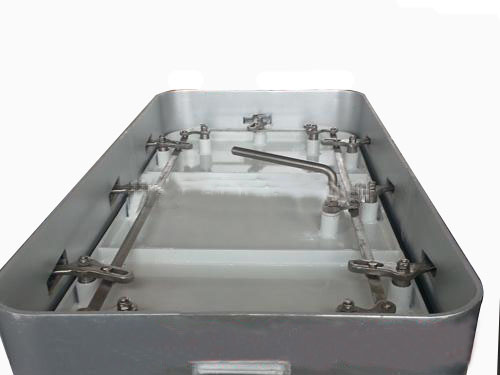

- With dog-clips operating mechanisms
- Epoxy zinc rich primer coating
- Design and manufacture special structures required by clients
Specification:
China Marine Aluminum Quick Acting Weathertight Door with Single Lever |
Standard: GB/T3477-96 &CB/T454-97 for reference. |
The Aluminum weathertight door must pass the hose test with nozzle diameter 12.5mm and the water pressure 0.25Mpa. |

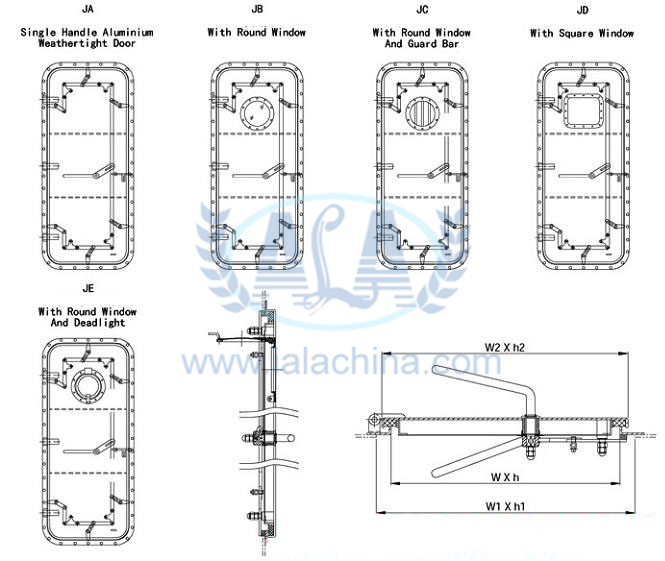

Type |
JA-Aluminum weathertight door |

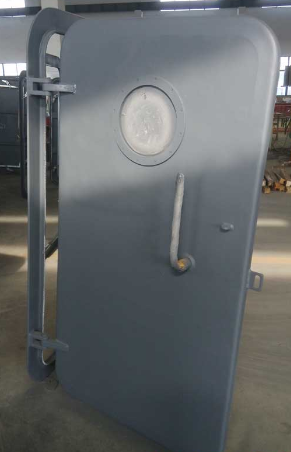

JB-Aluminum weathertight door with round window |
JC-Aluminum weathertight door with round window & guard bar |

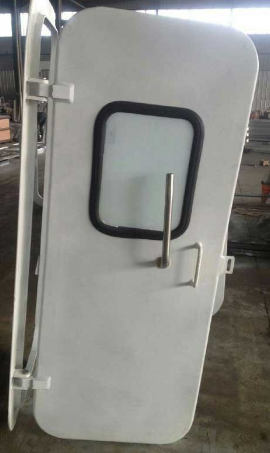

JD-Aluminum weathertight door with square window |
JE-Aluminum weathertight door with round window & deadlight |
Main Material |
Door Leaf-Aluminum |
Door Frame-Aluminum(Bolted installment) or Steel (Welded installment) |
Lever-Carbon Steel or Stainless Steel |
Clear Size | Cut Out Size | Door leaf Size | Door Frame | |||
WXh | W1Xh1 | R | W2Xh2 | t | Spec | Thickness |
500x1000 | 560x1060 | 130 | 555x1055 | 4,6 | 75x50 | 6,8 |
600x1200 | 660x1260 | 655x1255 | ||||
600x1400 | 660x1460 | 655x1455 | ||||
750x1400 | 810x1460 | 805x1455 | ||||
900x1400 | 960x1460 | 955x1455 | ||||
600x1600 | 660x1660 | 655x1655 | ||||
750x1600 | 810x1660 | 805x1655 | ||||
900x1600 | 960x1660 | 955x1655 | ||||
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
