MARINE ALUMINUM FIXED RECTANGULAR WINDOW FOR WHEELHOUSE
MARINE ALUMINUM FIXED RECTANGULAR WINDOW FOR WHEELHOUSE

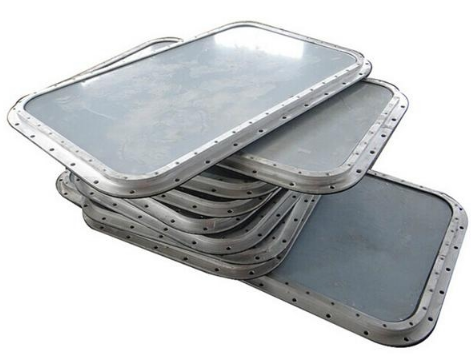

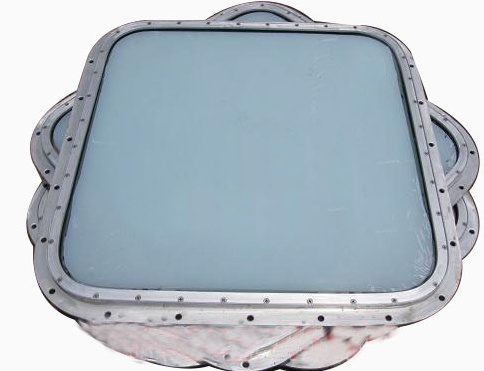

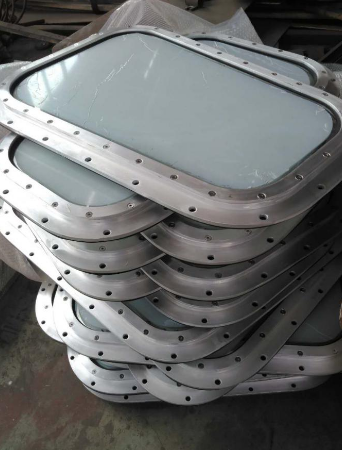

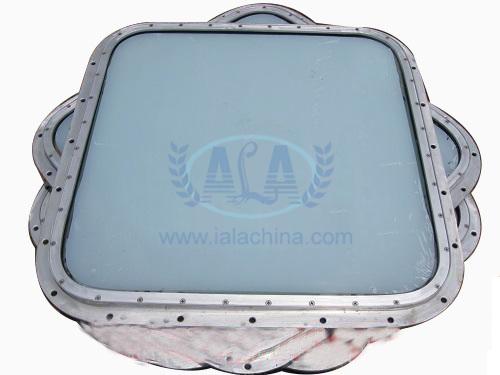

Product showing:
Description:
This is marine used rectangular window, frame material is aluminum alloy. Of course the material can be customized as steel according to customers' requirement. It used tempered glass, followed SOLAS rules with fireproof property. Such type window used bolted type fixed way, installed on vessel's superstructure, wheelhouse, bridge and enclosed area.
Specification:

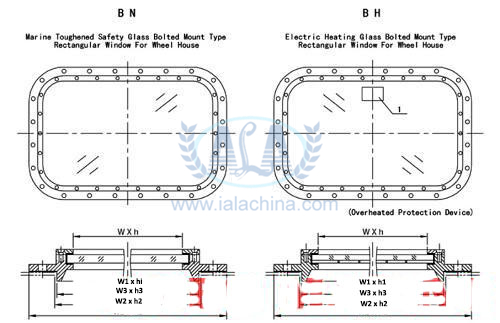

1.Types of non-opening rectangular windows for wheel house
Type | Window frame type | Name | Material of window frame |
A | BH | Bolted fixed rectangular window with an electric heated glass pane | Aluminum Alloy |
BN | Bolted fixed rectangular window with a toughened glass pane | ||
B | WH | Welded fixed rectangular window with an electric heated glass pane | Carbon Steel |
WN | Welded fixed rectangular window with a toughened glass pane |
2.Parameters of fixed rectangular windows for wheel house
Type | Nominal Size | Frame | Size of opening | Glass Thickness | Weight (kgs) | ||||
WXH | W1XH1 | W2XH2 | W3XH3 | r | BH | BN | BH | BN | |
A | 800X630 | 848X678 | 930X760 | 852x682 | 126 | 12 | 15 | 25.5 | 25.9 |
800X710 | 848X758 | 930X840 | 852x762 | 12 | 15 | 28.1 | 28.7 | ||
900X630 | 948X678 | 1030X760 | 952x682 | 12 | 17 | 28.2 | 30 | ||
900X710 | 948X758 | 1030X840 | 952x762 | 12 | 17 | 30.9 | 32.9 | ||
900X800 | 948X848 | 1030X930 | 952x852 | 12 | 17 | 33.9 | 36.1 | ||
1200X630 | 1248X378 | 1330X760 | 1252x682 | 15 | 20 | 41.6 | 44 | ||
1200X710 | 1248X758 | 1330X840 | 1252x762 | 15 | 20 | 45.9 | 48.6 | ||
1200X800 | 1248X848 | 1330X930 | 1252x852 | 15 | 20 | 50.6 | 53.6 | ||
1500X710 | 1548X758 | 1630X840 | 1552x762 | 15 | 20 | 56.1 | 59.4 | ||
1500X800 | 1548X848 | 1630X930 | 1552x852 | 15 | 20 | 61.2 | 64.9 | ||
1800X710 | 1848X758 | 1930X840 | 1852x762 | 15 | 20 | 66.3 | 70.3 | ||
1800X800 | 1848X848 | 1930X930 | 1852x852 | 15 | 20 | 72.4 | 76.8 | ||
1800X900 | 1848X948 | 1930X1030 | 1852x952 | 15 | 20 | 77.5 | 82.5 | ||
Type | Nominal Size | Frame | Size of opening | Glass Thickness | Weight (kgs) | ||||
WXH | W1XH1 | W2XH2 | W3XH3 | r | WH | WN | WH | WN | |
B | 800X630 | 848X678 | 930X760 | 852x682 | 126 | 12 | 15 | 41.3 | 41.8 |
800X710 | 848X758 | 930X840 | 852x762 | 12 | 15 | 44.2 | 44.8 | ||
900X630 | 948X678 | 1030X760 | 952x682 | 12 | 17 | 45.1 | 46.9 | ||
900X710 | 948X758 | 1030X840 | 952x762 | 12 | 17 | 48.5 | 50.5 | ||
900X800 | 948X848 | 1030X930 | 952x852 | 12 | 17 | 52.4 | 54.6 | ||
1200X630 | 1248X378 | 1330X760 | 1252x682 | 15 | 20 | 60.9 | 63.3 | ||
1200X710 | 1248X758 | 1330X840 | 1252x762 | 15 | 20 | 66.6 | 69.2 | ||
1200X800 | 1248X848 | 1330X930 | 1252x852 | 15 | 20 | 72.2 | 75.2 | ||
1500X710 | 1548X758 | 1630X840 | 1552x762 | 15 | 20 | 79.8 | 83.1 | ||
1500X800 | 1548X848 | 1630X930 | 1552x852 | 15 | 20 | 86.4 | 90.1 | ||
1800X710 | 1848X758 | 1930X840 | 1852x762 | 15 | 20 | 93.1 | 97.1 | ||
1800X800 | 1848X848 | 1930X930 | 1852x852 | 15 | 20 | 100.4 | 104.8 | ||
1800X900 | 1848X948 | 1930X1030 | 1852x952 | 15 | 20 | 108.6 | 113.6 |
3.Mounting of the heated glass pane fro fixed rectangular window for wheel house should conform to the requirements of ISO3434, power loading and parameters necessary for the glass pane as below.
Electrical Supply | Overheating protection device | Minimum power loading w/dw2 | ||||
Current | Voltage (V) | Frequency (HZ) | 7 | 12 | 17 | |
Code | ||||||
DC | 24 | - | G | 7G01 | 12G01 | 17G01 |
S | 7S01 | 12S01 | 17S01 | |||
110 | - | G | 7G02 | 12G02 | 17G02 | |
S | 7S02 | 12S02 | 17S02 | |||
220 | - | G | 7G03 | 12G03 | 17G03 | |
S | 7S03 | 12S03 | 17S03 | |||
G---group regulator, S---single regulator |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
