D TYPE RUBBER FENDER
D TYPE RUBBER FENDER
Product showing:
Description:

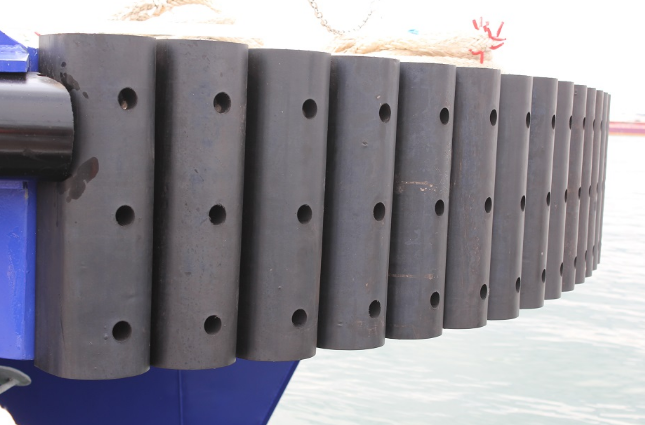

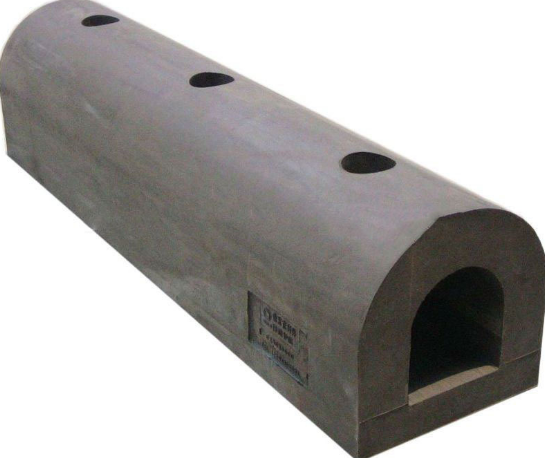

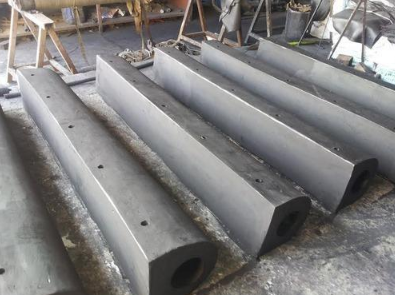

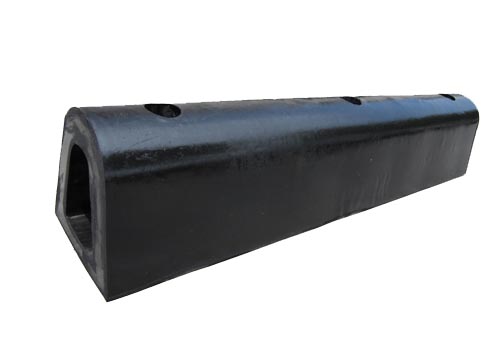

D Type Rubber Fenders, Square and Rectangular Rubber Fenders are often used for tugs, barges, workboats and pilot boats as the side belting and protective fenders against heavy rubbing, brushing forms during escort duties and when coming alongside. D-section and Square rubber fenders have circular bore, or D-bore. These rubber fenders display a higher energy absorption capacity, thus minimizing deface contact.
Specification:
Types | specification(mm) | Notes | ||||||||
H | B | L | Holes | Q | c | h | D | d | ||
DD100x100x2000 | 100 | 100 | 2000 | 5 | 425 | 150 | 30 | 45 | 25 | Products of other sizes can be manufactured at user`s request. |
DD150x150x2000 | 150 | 150 | 2000 | 5 | 425 | 150 | 50 | 55 | 28 | |
DD160x150x2500 | 160 | 150 | 2500 | 6 | 440 | 150 | 45 | 55 | 28 | |
DD200x200x850 | 200 | 200 | 850 | 3 | 325 | 100 | 35 | 62 | 30 | |
DD200x200x900 | 200 | 200 | 900 | 2 | 600 | 150 | 35 | 62 | 30 | |
DD200x200x1000 | 200 | 200 | 1000 | 3 | 350 | 150 | 35 | 62 | 30 | |
DD200x200x1500 | 200 | 200 | 1500 | 3 | 600 | 150 | 35 | 62 | 30 | |
D(D)300x300x850 | 300 | 300 | 850 | 3 | 325 | 100 | 40 | 65 | 32 | |
D(D)300x360x850 | 300 | 360 | 850 | 3 | 325 | 100 | 40 | 65 | 32 | |
D(D)300x300x900 | 300 | 300 | 900 | 2 | 600 | 150 | 40 | 65 | 32 | |
D(D)300x300x1000 | 300 | 300 | 1000 | 3 | 350 | 150 | 40 | 65 | 32 | |
D(D)300x300x1500 | 300 | 300 | 1500 | 4 | 400 | 150 | 40 | 65 | 32 | |
D(D)300x360x1000 | 300 | 360 | 1000 | 3 | 350 | 150 | 40 | 65 | 32 | |
D(D)300x360x1500 | 300 | 360 | 1500 | 4 | 400 | 150 | 40 | 65 | 32 | |
DD400x400x850 | 400 | 400 | 850 | 3 | 325 | 100 | 55 | 65 | 32 | |
DD400x400x1000 | 400 | 400 | 1000 | 3 | 350 | 150 | 55 | 65 | 32 | |
DD400x400x1500 | 400 | 400 | 1500 | 3 | 600 | 150 | 55 | 65 | 32 | |
D500x500x850 | 500 | 500 | 850 | 3 | 325 | 100 | 90 | 97 | 45 | |
D500x500x1000 | 500 | 500 | 1000 | 3 | 350 | 150 | 90 | 97 | 45 | |
D500x500x1500 | 500 | 500 | 1500 | 3 | 600 | 150 | 90 | 97 | 45 |
Application:
Rubber fender is the most commonly used fender,it is with high energy absorption,flexible layout,and suitable dimension for installment. It is popular protective cushion product, widely apply to large vessels, offshore platforms,bridge piers,wharf and ports.
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
