DRUM TYPE RUBBER FENDER
DRUM TYPE RUBBER FENDER

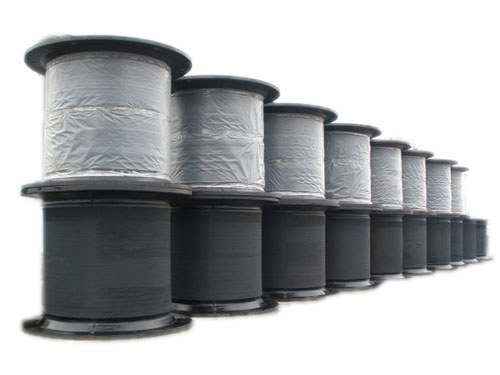

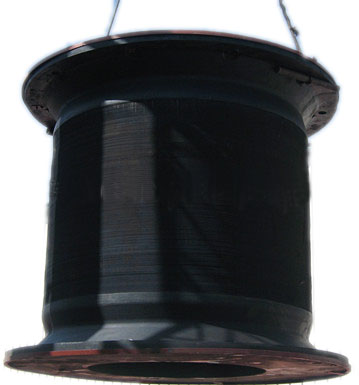

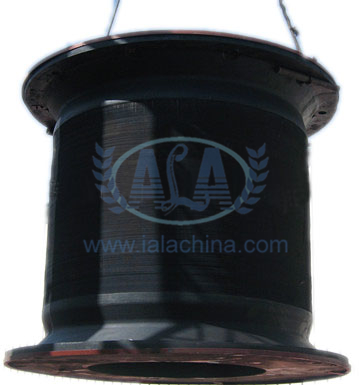

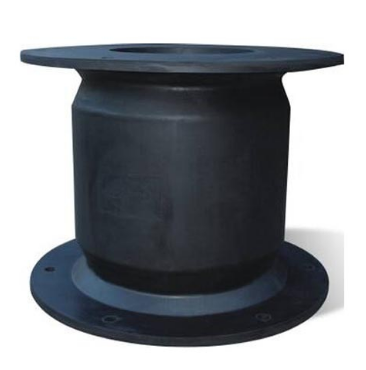

Product showing:
Description:
Low anti-force and high energy absorption. Reasonable structure and long service life. The installation is firm and easy to replace.
Tons of rubber (consump tion) is high in energy absorption, but the anti-force is high (the unit reaction energy is the lowest in the compressive fender).
Specification:
Type | Main specification(mm) | |||||
H | D1 | D2 | h | Holes n | d | |
YGCH400 | 400 | 550 | 650 | 25 | 4 | Φ30 |
YGCH500 | 500 | 550 | 650 | 25 | 4 | Φ32 |
YGCH630 | 630 | 700 | 840 | 30 | 4 | Φ39 |
YGCH800 | 800 | 900 | 1050 | 30 | 6 | Φ40 |
YGCH1000 | 1000 | 1100 | 1300 | 35 | 6 | Φ47 |
YGCH1150 | 1150 | 1300 | 1500 | 40 | 6 | Φ50 |
YGCH1250 | 1250 | 1450 | 1650 | 45 | 6 | Φ53 |
YGCH1450 | 1450 | 1650 | 1850 | 47 | 6 | Φ61 |
YGCH1600 | 1600 | 1800 | 2000 | 50 | 8 | Φ61 |
YGCH1700 | 1700 | 1900 | 2100 | 50 | 8 | Φ66 |
YGCH2000 | 2000 | 2000 | 2200 | 50 | 8 | Φ74 |
YGCH2250 | 2250 | 2300 | 2550 | 60 | 10 | Φ74 |
YGCH2500 | 2500 | 2700 | 2950 | 70 | 10 | Φ74 |
YGCH3000 | 3000 | 3150 | 3350 | 75 | 12 | Φ90 |
Note: Products of other sizes can be manufactured at user`s request. |
Application:
Rubber fender suitable for wharf, port, community, factory, etc
Because the fender is small at the bottom and only a row of mounting bolts is used, it is especially suitable for the frame type wharf and the upper bank of the wharf.
Easy to install and easy to replace.
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
