DOCK CORNER TYPE RUBBER FENDER
DOCK CORNER TYPE RUBBER FENDER

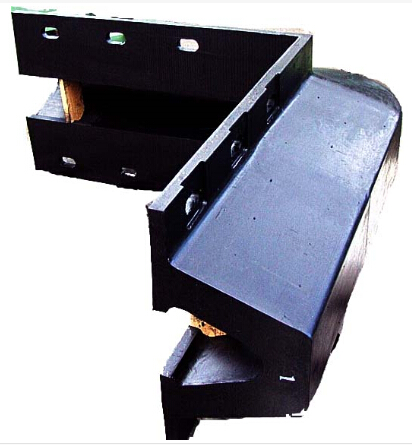

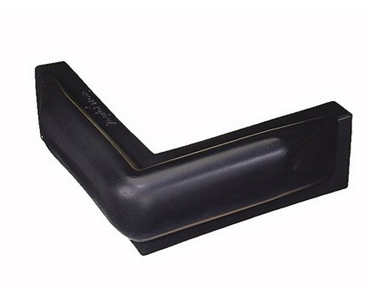

Product showing:
Description:
The kinetic energy is absorbed by its own deformation, avoiding the ship directly contacting the dock at the docking, causing damage to the hull and dock facilities; and reducing the speed of the ship and better allowing the ship to reach the designated location.
Specification:
Specification | H | L | A | P | a | c | d | e | f | J | T | h | MD |
150Hx500L | 150 | 500 | 300 | 200 | 240 | 75 | 25 | 55 | 95 | 98 | 22.5 | 16.5 | M22 |
200Hx750L | 200 | 750 | 400 | 350 | 320 | 100 | 29 | 75 | 105 | 130 | 35 | 30 | M24 |
250Hx750L | 250 | 750 | 500 | 350 | 410 | 100 | 34 | 90 | 125 | 164 | 37.5 | 20.5 | M27 |
2550Hx1000L | 250 | 1000 | 500 | 550 | 410 | 150 | 34 | 90 | 125 | 164 | 37.5 | 20.5 | M27 |
Note:Products of other type and sizes can be manufactured at user`s request. |
Application:
Suitable for the harbour corner.
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
