CYLINDRICAL TYPE RUBBER FENDER
CYLINDRICAL TYPE RUBBER FENDER
Product showing:
Description:

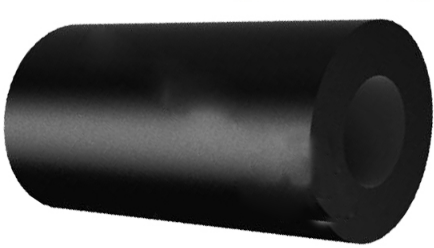

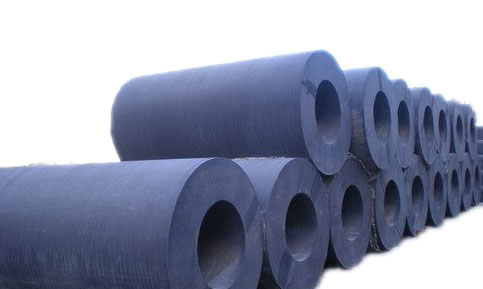

Cylindrical rubber fender has low reaction forces, little surface preeure and reasonable energy absorption.
Cylindrical fender is espcially applicable for upper part of integral docks and heavy style docks.
Cylindrical fender is applicable for ships with different size.

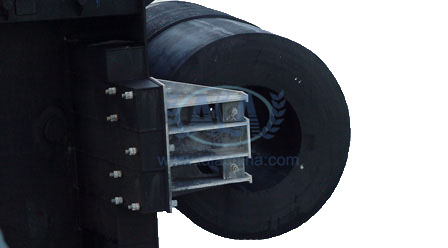

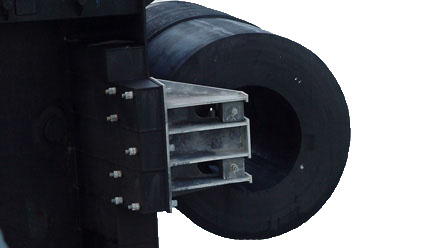

Various installations styles such as horizontal, vertical and diagonal etc
Accessories:Steel Bar, Chain, Shackle and U-Ring
Specification:

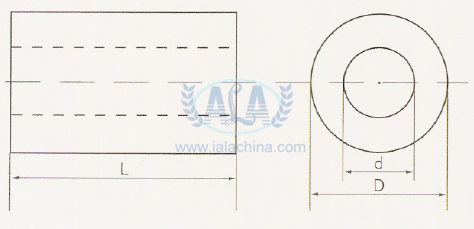

Types | Outer dia | Inner dia | Length of product | notes |
Φ150xL | 150 | 75 | 500-30000 | Products of other sizes can be manufactured at user`s request. |
Φ200xL | 200 | 100 | ||
Φ250xL | 250 | 125 | ||
Φ300xL | 300 | 150 | ||
Φ350xL | 350 | 175 | ||
Φ400xL | 400 | 200 | ||
Φ500xL | 500 | 250 | ||
Φ600xL | 600 | 300 | ||
Φ700xL | 700 | 350 | ||
Φ800xL | 800 | 400 | ||
Φ900xL | 900 | 450 | ||
Φ1000xL | 1000 | 500 | 1000-20000 | |
Φ1100xL | 1100 | 550 | ||
Φ1200xL | 1200 | 600 | ||
Φ1300xL | 1300 | 650 | ||
Φ1400xL | 1400 | 700 | ||
Φ1500xL | 1500 | 750 | ||
Φ1600xL | 1600 | 800 | ||
Φ1700xL | 1700 | 850 | ||
Φ1800xL | 1800 | 900 | ||
Φ1900xL | 1900 | 950 | ||
Φ2000xL | 2000 | 1000 |
Features:
Cylindrical rubber fender has the features as follows:
1. Low reaction force and surface pressure,reasonable rated energy absorption;
2. Strong adaptability transverse and vertical shake when the ship berths;
3. Easy to deploy. Size : OD0.15 m x ID0.075m ~ OD2.0 x ID1.0m.
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
