ARCH TYPE RUBBER FENDER
ARCH TYPE RUBBER FENDER

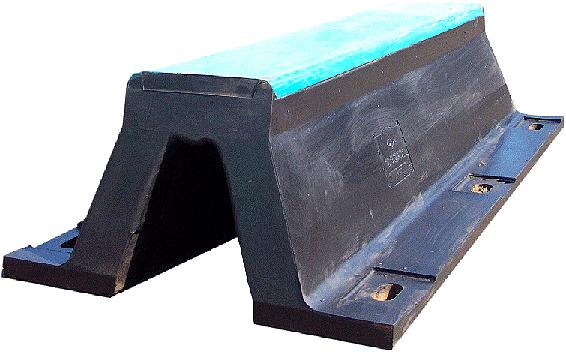

Product showing:
Description:
Arch Fender has excellent solidity of anchor is suitable to ship, wharf and docks, enjoying vast scope of application.
Among compress fender series, our high quality arch fender enjoys relatively high energy absorption per weight unit (consume rubber).
Specification:
Types | Specification(mm) | ||||||||||||||
H | L | L1 | C | Q | n | B | B1 | B2 | B3 | h | a | b | e | f | |
DGH150x1000 | 150 | 1000 | 1075 | 110 | 855 | 1 | 98 | 240 | 300 | 96 | 22.5 | 50 | 95 | 25 | 55 |
DGH150x1500 | 150 | 1500 | 1575 | 112.5 | 675 | 2 | 98 | 240 | 300 | 96 | 22.5 | 50 | 95 | 25 | 55 |
DGH150x2000 | 150 | 2000 | 2075 | 107.5 | 620 | 3 | 98 | 240 | 300 | 96 | 22.5 | 50 | 95 | 25 | 55 |
DGH150x2500 | 150 | 2500 | 2575 | 110 | 785 | 3 | 98 | 240 | 300 | 96 | 22.5 | 50 | 95 | 25 | 55 |
DGH150x3000 | 150 | 3000 | 3075 | 107.5 | 715 | 4 | 98 | 240 | 300 | 96 | 22.5 | 50 | 95 | 25 | 55 |
DGH150x3500 | 150 | 3500 | 3575 | 110 | 671 | 5 | 98 | 240 | 300 | 96 | 22.5 | 50 | 95 | 25 | 55 |
DGH200x1000 | 200 | 1000 | 1100 | 120 | 860 | 1 | 131 | 320 | 400 | 128 | 35 | 58 | 105 | 29 | 75 |
DGH200x1500 | 200 | 1500 | 1600 | 120 | 680 | 2 | 131 | 320 | 400 | 128 | 35 | 58 | 105 | 29 | 75 |
DGH200x2000 | 200 | 2000 | 2100 | 120 | 620 | 3 | 131 | 320 | 400 | 128 | 35 | 58 | 105 | 29 | 75 |
DGH200x2500 | 200 | 2500 | 2600 | 122.5 | 785 | 3 | 131 | 320 | 400 | 128 | 35 | 58 | 105 | 29 | 75 |
DGH200x3000 | 200 | 3000 | 3100 | 120 | 715 | 4 | 131 | 320 | 400 | 128 | 35 | 58 | 105 | 29 | 75 |
DGH200x3500 | 200 | 3500 | 3600 | 120 | 672 | 5 | 131 | 320 | 400 | 128 | 35 | 58 | 105 | 29 | 75 |
DGH250x1000 | 250 | 1000 | 1125 | 130 | 865 | 1 | 164 | 410 | 500 | 160 | 27.5 | 64 | 125 | 32 | 90 |
DGH250x1500 | 250 | 1500 | 1625 | 132.5 | 680 | 2 | 164 | 410 | 500 | 160 | 27.5 | 64 | 125 | 32 | 90 |
DGH250x2000 | 250 | 2000 | 2125 | 132.5 | 620 | 3 | 164 | 410 | 500 | 160 | 27.5 | 64 | 125 | 32 | 90 |
DGH250x2500 | 250 | 2500 | 2625 | 127.5 | 790 | 3 | 164 | 410 | 500 | 160 | 27.5 | 64 | 125 | 32 | 90 |
DGH250x3000 | 250 | 3000 | 3125 | 132.5 | 715 | 4 | 164 | 410 | 500 | 160 | 27.5 | 64 | 125 | 32 | 90 |
DGH250x3500 | 250 | 3500 | 3625 | 130 | 673 | 5 | 164 | 410 | 500 | 160 | 27.5 | 64 | 125 | 32 | 90 |
Note: Products of other sizes can be manufactured at user`s request. |
Types | Specification(mm) | ||||||||||||||
H | L | L1 | C | Q | n | B | B1 | B2 | B3 | h | a | b | e | f | |
DGH300x1000 | 300 | 1000 | 1150 | 140 | 870 | 1 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DGH300x1500 | 300 | 1500 | 1650 | 140 | 685 | 2 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DGH300x2000 | 300 | 2000 | 2150 | 137.5 | 625 | 3 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DGH300x2500 | 300 | 2500 | 2650 | 140 | 790 | 3 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DGH300x3000 | 300 | 3000 | 3150 | 145 | 715 | 4 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DGH300x3500 | 300 | 3500 | 3650 | 140 | 674 | 5 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DGH400x1000 | 400 | 1000 | 1200 | 150 | 900 | 1 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DGH400x1500 | 400 | 1500 | 1700 | 150 | 700 | 2 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DGH400x2000 | 400 | 2000 | 2200 | 147.5 | 635 | 3 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DGH400x2500 | 400 | 2500 | 2700 | 150 | 800 | 3 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DGH400x3000 | 400 | 3000 | 3200 | 150 | 725 | 4 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DGH400x3500 | 400 | 3500 | 3700 | 150 | 680 | 5 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DGH500x1000 | 500 | 1000 | 1250 | 160 | 930 | 1 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DGH500x1500 | 500 | 1500 | 1750 | 160 | 715 | 2 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DGH500x2000 | 500 | 2000 | 2250 | 157.5 | 645 | 3 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DGH500x2500 | 500 | 2500 | 2750 | 160 | 810 | 3 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DGH500x3000 | 500 | 3000 | 3250 | 165 | 730 | 4 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DGH500x3500 | 500 | 3500 | 3750 | 160 | 686 | 5 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DGH600x1000 | 600 | 1000 | 1300 | 170 | 960 | 1 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DGH600x1500 | 600 | 1500 | 1800 | 170 | 730 | 2 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DGH600x2000 | 600 | 2000 | 2300 | 167.5 | 655 | 3 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DGH600x2500 | 600 | 2500 | 2800 | 170 | 820 | 3 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DGH600x3000 | 600 | 3000 | 3300 | 170 | 740 | 4 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DGH600x3500 | 600 | 3500 | 3800 | 170 | 692 | 5 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DGH800x1000 | 800 | 1000 | 1400 | 180 | 1040 | 1 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DGH800x1500 | 800 | 1500 | 1900 | 180 | 770 | 2 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DGH800x2000 | 800 | 2000 | 2400 | 180 | 680 | 3 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DGH800x2500 | 800 | 2500 | 2900 | 182.5 | 845 | 3 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DGH800x3000 | 800 | 3000 | 3400 | 180 | 760 | 4 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DGH1000x1000 | 1000 | 1000 | 1500 | 200 | 1100 | 1 | 750 | 1680 | 2000 | 650 | 90 | 136 | 290 | 68 | 300 |
DGH1000x1500 | 1000 | 1500 | 2000 | 200 | 800 | 2 | 750 | 1680 | 2000 | 650 | 90 | 136 | 290 | 68 | 300 |
DGH1000x2000 | 1000 | 2000 | 2500 | 200 | 700 | 3 | 750 | 1680 | 2000 | 650 | 90 | 136 | 290 | 68 | 300 |
Note: Products of other sizes can be manufactured at user`s request. |
Application:
The fender is a bumper used to absorb the kinetic energy of a boat or vessel berthing against a jetty, quay wall or other vessel. Fenders are used to prevent damage to boats, vessels and berthing structures. Fenders are typically manufacturered out of rubber, foam elastomer or plastic. Rubber fenders are either extruded or made in a mould. The type of fender that is most suitable for an application depends on many variables, including dimensions and displacement of the vessel, maximum allowable stand-off, berthing structure, tidal variations and other berth-specific conditions. The size of the fender unit is based on the berthing energy of the vessel which is related to the square of the berthing velocity.
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
