ALUMINUM SLIDING WINDOW
ALUMINUM SLIDING WINDOW

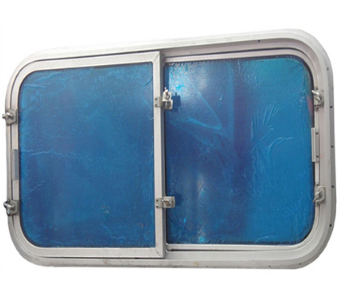

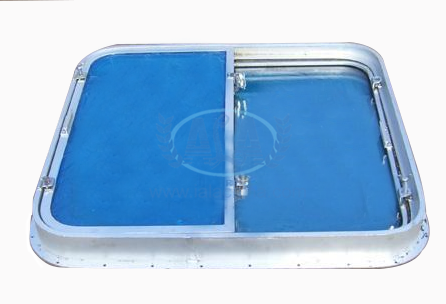

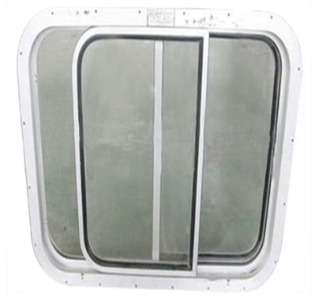

Product showing:
Description:
China Aluminum Sliding Window |
Standard: CB/T3765-1996 |
It can be at the wheelhouse and superstructure above the freeboard deck of the vessels. |

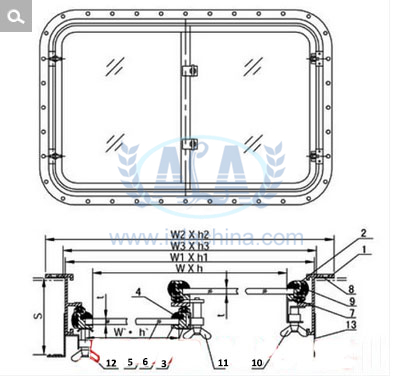

Main Parts & Material |
1-Window Frame: Aluminum Alloy |
2-Window Inner Frame: Aluminum Alloy |
3-Window Outer Frame:Aluminum Alloy |
4~9-Seal Strip: Rubber |
10~12-Butterfly Clip: Carbon Steel or Stainless Steel |
13-Window Box: Aluminum Alloy |
Specification:
Nominal Size | Clear Size | Window Frame Size | Opening Size | Glass Size | Max Pressure(Kpa) | Weight(kgs) | ||||
wxh | W'xh'xr' | w1xh1xr | w2xh2xr2 | w3xh3xr3 | thickness(t) | w4xh4xr4 | t=8 | t=6 | t=8 | t=6 |
740x500 | 355x500x50 | 825x588x94 | 890x650x125 | 840x600x100 | 6,8 | 373x518x58 | 45 | 26 | 20 | 18.9 |
830x560 | 400x560x50 | 918x648x94 | 980x710x125 | 930x660x100 | 418x578x58 | 36 | 21 | 21.9 | 20.7 | |
930x630 | 450x630x100 | 1018x718x144 | 1080x780x175 | 1030x730x150 | 468x648x108 | 28 | 16 | 24.8 | 23.3 | |
1030x710 | 500x710x100 | 1118x798x144 | 1180x860x175 | 1130x810x150 | 518x728x108 | 23 | 13 | 28 | 26.1 | |
500x630 | 235x630x50 | 588x718x94 | 650x780x125 | 600x730x100 | 253x648x58 | 66 | 37 | 18.6 | 17.8 | |
600x710 | 285x710x50 | 688x798x94 | 750x860x125 | 700x810x100 | 303x728x58 | 46 | 26 | 21.5 | 20.4 | |
750x800 | 360x800x50 | 838x888x94 | 900x950x125 | 850x900x100 | 378x818x58 | 30 | 18 | 25.6 | 24 | |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
