ALUMINUM DOUBLE-LAYERS HOLLOW GLASS SOUNDPROOF WINDOW
ALUMINUM DOUBLE-LAYERS HOLLOW GLASS SOUNDPROOF WINDOW

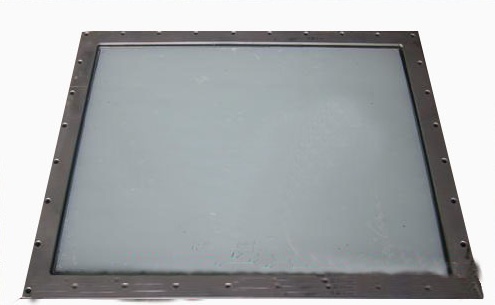

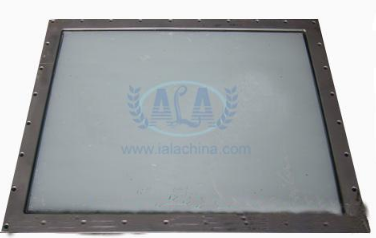

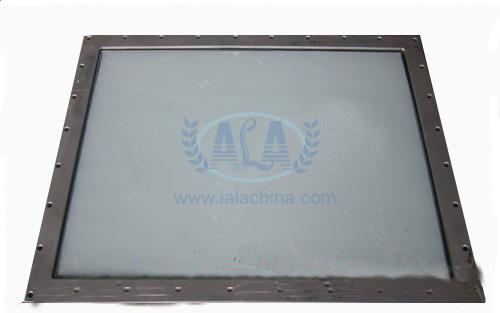

Product showing:
Description:
China Aluminum Double-Layers Hollow Glass Soundproof Window |
Standard: CB/T3917-1999 |
It is used on the cabin which needs soundproof, heat insulation and thermal insultion. |
Main Material |
Frame: Aluminum Alloy |
Glass: G-safety glass, P-plate glass, J-Composite glass, C-Dark Brown Safety Glass |
Specification:

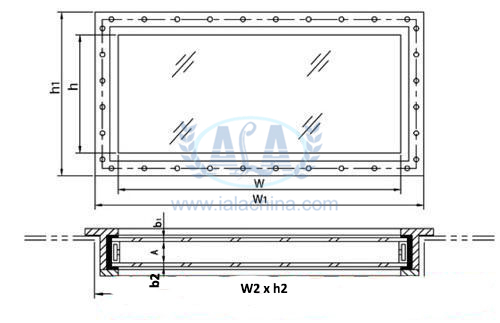

Nominal Size | Outside Size | Opening Size | Glass Thickness | Hollow Distance | Glass Thickness | Sound proof | Weight |
wxh | w1xh1 | w2xh2 | b1 | A | b2 | TL (dB) | kgs |
300x425 | 420x545 | 352x477 | 6 | 6 | 6 | 29 | 10 |
300x425 | 420x545 | 352x477 | 6 | 9 | 6 | 30.5 | 10 |
355x500 | 475x620 | 407x552 | 6 | 6 | 6 | 29 | 15.6 |
355x500 | 475x620 | 407x552 | 6 | 9 | 6 | 31.5 | 16.2 |
400x560 | 520x680 | 452x612 | 6 | 6 | 6 | 28.6 | 18.2 |
400x560 | 520x680 | 452x612 | 6 | 9 | 6 | 31.5 | 18.6 |
450x360 | 570x750 | 520x682 | 6 | 9 | 6 | 31.5 | 21.2 |
500x710 | 620x830 | 552x762 | 6 | 9 | 6 | 31 | 25.3 |
900x630 | 1020x750 | 952x682 | 6 | 12 | 6 | 30.5 | 29.4 |
900x630 | 1020x750 | 952x682 | 8 | 16 | 6 | 31.8 | 33.2 |
900x630 | 1020x750 | 952x682 | 8 | 24 | 6 | 35 | 34 |
1000x800 | 1120x920 | 1052x852 | 8 | 16 | 6 | 31 | 45.9 |
1000x800 | 1120x920 | 1052x852 | 8 | 24 | 6 | 35 | 46.7 |
1200x800 | 1320x920 | 1252x852 | 8 | 24 | 6 | 34 | 54.4 |
1400x800 | 1520x920 | 1452x852 | 8 | 24 | 6 | 33 | 59.2 |
1600x1000 | 1720x1120 | 1652x1052 | 8 | 24 | 6 | 32 | 81.3 |
1800x1200 | 1920x1320 | 1852x1252 | 8 | 24 | 6 | 30.52 | 104.5 |
*The size in the above list is just for reference. The actual size is decided by the customer according to the vessel.
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
