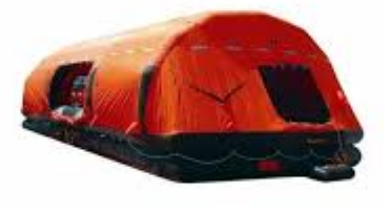

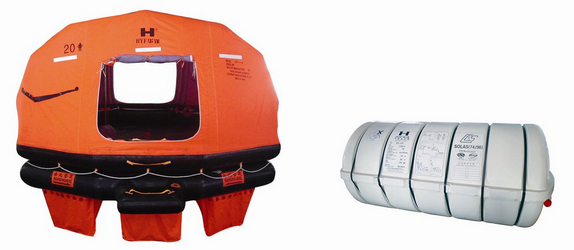

(LARGE) THROW-OVER SELF-RIGHTING INFLATABLE LIFE RAFT (SOLAS)
(LARGE) THROW-OVER SELF-RIGHTING INFLATABLE LIFE RAFT (SOLAS)
Description:
Suitable for installing in the vessels sailing on international voyages.
Max. Storage Height: 18~36m
Equipment Outfit: SOLAS A B PACK
It meets the China MSA-“ Regulations for the Statutory Surveys of Ships and offshore Installations—Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged inDomestic Voyages”2004,and it′s 2008 Amendments,Part4, Ch.3.and SOLAS(74/96),LSA,MSC.81(70), MSC.226(82), MSC.218(82), MSC.293(87),ISO15738(2002).
Also,can completed with hydrostatic release unit and cradle according to your request.
Specification:
Type | Capacity(P) | Max Storage height(m) | Weight≤(kg) | Container Dimension(mm) | ||
A Pack | B Pack | A Pack | B Pack | |||
HYF-Z50 | 50 | 36 | 357 | 232 | 1960x850 | 1680x800 |
HYF-Z65 | 65 | 36 | 473 | 314 | 2080x1090 | 1960x850 |
HYF-Z100 | 100 | 25 | 688 | 472 | 2200x1150 | 2080x1090 |
HYF-Z101 | 101 | 25 | 690 | 472 | 2200x1150 | 2080x1090 |
HYF-Z125 | 125 | 25 | 1024 | 624 | 2600x1150 | 2200x1150 |
Application | The liferafts are applicable to vessels navigation in international(class 1) or domestic zone and also used for all kinds of offshore facility lifesaving. And it supports the use of marine evacuation system. |
Product standard | The international convention for the safety of life at sea, SOLAS 1974,1996 Amendments and MSC.216(82);MSC.48(66). The international life-saving appliance(LSA) code; MSC.81(70) amendents to be revised recommendation on testing of life-saving appliance; MSC.218(82),MSC.293(87) amendments to be the international life-saving appliance(LSA) code; MSC.226(82); MSC.295(87); MSC.323(89) amendments to be revised recommendation on testing of life-saving appliances, as amended. |
Emergency pack type | A pack or B pack |
Certificate | CCS |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
