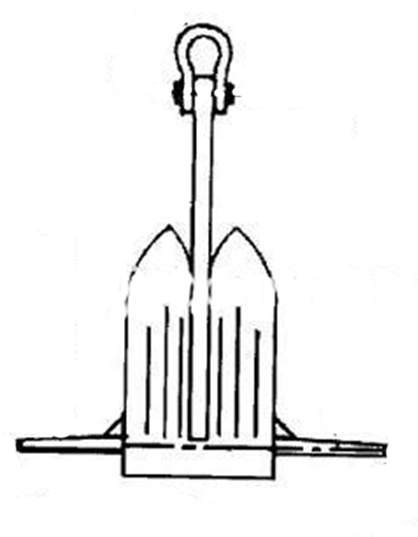

ANCHOR-Marine Stato Anchor
ANCHOR-Marine Stato Anchor
Material: Casting Steel
Weight: 20KGS to 30000KGS
Drawing: Will be submit as per customer request.
Class Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS and CCS
+8613355655259
+86551-68997282
Products Introduction
ANCHOR-Marine Stato Anchor
Description:
Material: Casting Steel
Weight: 20KGS to 30000KGS
Drawing: Will be submit as per customer request.
Class Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS and CCS

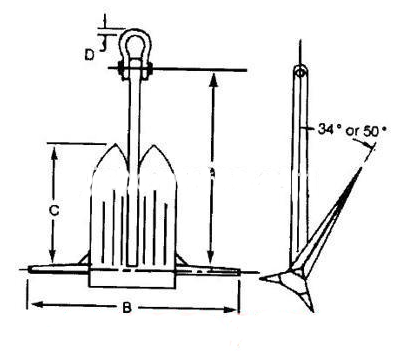

Specification:
NORMAL | DIMENSION(MM) | |||
WEIGHT(KG) | A | B | C | D |
3000 | 129 | 109 | 72 | 1 3/4 |
6000 | 144 | 143 | 92 | 2 1/4 |
9000 | 160 | 170 | 100 | 2 3/4 |
12000 | 186 | 197 | 113 | 3 |
15000 | 204 | 224 | 126 | 3 1/2 |
20000 | 210 | 230 | 129 | 3 3/4 |
25000 | 226 | 246 | 137 | 4 |
30000 | 235 | 257 | 145 | 5 |
35000 | 248 | 271 | 153 | 5 1/4 |
40000 | 258 | 283 | 160 | 5 1/2 |
45000 | 269 | 295 | 166 | 5 3/4 |
50000 | 277 | 303 | 171 | 6 |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
