Description:

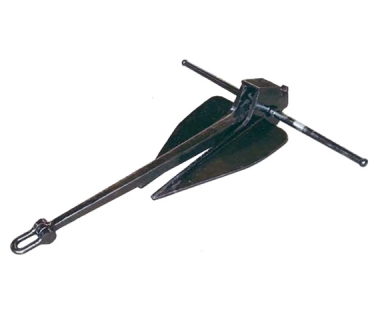

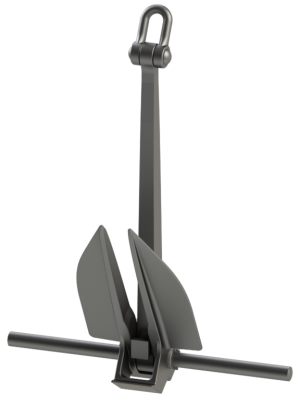

The light weight anchor or LWT anchor is a High holding power anchor and can be up to 25% lighter than a standard anchor; With the “hook” head forcing the flukes to dig in quickly, and the large fluke design providing tremendous holding power; this anchor offers terrific holding power in both sand and mud bottoms.
Material: Casting Steel
Drawing: Will be submit as per customer request.
Class Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS and CCS

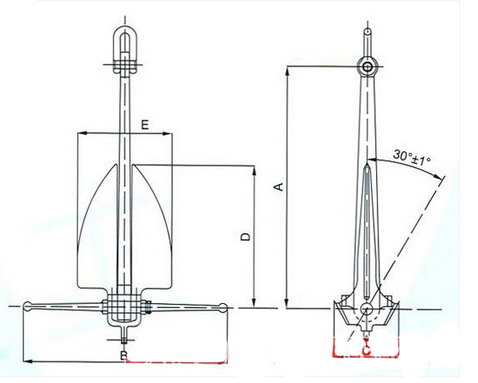

Specification:
NORMAL | DIMENSION(MM) | ||||
WEIGHT(KG) | A | B | C | D | E |
14 | 770 | 730 | 222 | 444 | 288 |
23 | 885 | 840 | 252 | 508 | 328 |
34 | 965 | 915 | 279 | 559 | 366 |
45 | 1055 | 1000 | 310 | 610 | 396 |
70 | 1185 | 1130 | 348 | 686 | 450 |
90 | 1205 | 1140 | 360 | 737 | 480 |
140 | 1345 | 1270 | 414 | 825 | 540 |
180 | 1460 | 1380 | 450 | 895 | 584 |
230 | 1560 | 1480 | 482 | 952 | 610 |
340 | 1750 | 1640 | 560 | 1068 | 680 |
450 | 1910 | 1800 | 610 | 1165 | 740 |
680 | 2190 | 2080 | 700 | 1340 | 840 |
910 | 2350 | 2200 | 762 | 1435 | 940 |
1140 | 2580 | 2450 | 825 | 1575 | 1000 |
1360 | 2750 | 2600 | 880 | 1680 | 1060 |
1500 | 2830 | 2680 | 912 | 1730 | 1080 |
1820 | 2940 | 2790 | 952 | 1800 | 1120 |
2270 | 2990 | 2840 | 984 | 1830 | 1130 |
2730 | 3150 | 2990 | 1040 | 1930 | 1200 |
3180 | 3200 | 3030 | 1070 | 1960 | 1240 |
3630 | 3250 | 3070 | 1105 | 1980 | 1276 |
4100 | 3380 | 3200 | 1150 | 2060 | 1330 |
4540 | 3490 | 3310 | 1180 | 2130 | 1370 |
5000 | 3600 | 3420 | 1226 | 2200 | 1400 |
5500 | 3710 | 3520 | 1264 | 2260 | 1450 |
5900 | 3810 | 3610 | 1296 | 2320 | 1500 |
6400 | 3910 | 3710 | 1334 | 2390 | 1540 |
6800 | 3990 | 3790 | 1362 | 2440 | 1570 |
7300 | 4080 | 3870 | 1394 | 2490 | 1610 |
7700 | 4170 | 3950 | 1422 | 2540 | 1640 |
8200 | 4240 | 4020 | 1448 | 2590 | 1670 |
8600 | 4320 | 4100 | 1474 | 2640 | 1700 |
9100 | 4390 | 4170 | 1500 | 2690 | 1730 |
1000 | 4540 | 4300 | 1546 | 2770 | 1780 |
11400 | 4730 | 4480 | 1614 | 2890 | 1860 |
13600 | 5030 | 4800 | 1716 | 3070 | 1980 |
15000 | 5200 | 4950 | 1774 | 3170 | 2050 |
16000 | 5290 | 5050 | 1804 | 3230 | 2080 |
18000 | 5540 | 5280 | 1904 | 3330 | 2180 |
20000 | 5710 | 5450 | 1950 | 3480 | 2250 |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
