YH90S
YH90S
Description:

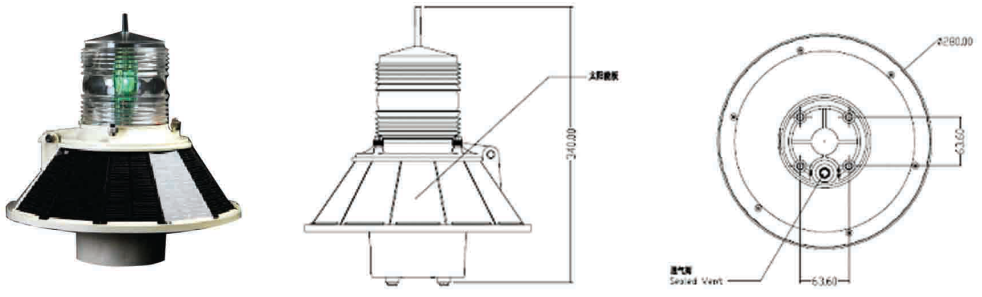

The YH90S is using the latest high intensity LEDs, made of solar modules, maintenance-free battery, Fresnel lens and base. The solar modules are angled to obtain maximum sunlight capture, allowing the unit to operate reliably in a range of low sunlight environments. There are 256 IALA user-adjustable flash characteristics. The YH90S has been proven to operate as 2-3+ nautical mile in various low sunlight environments.
Features and Specification:
Features |
·8 LEDs in one tier |
·100,000 hours LED life |
·256 IALA flash codes |
·Adjustable LED intensity |
·High efficient LED driver circuit |
·Over-voltage and over-current protections |
·NiMH battery |
·All surface mount technology |
·Polycarbonate housing |
·Optional Bluetooth controller |
SPECIFICATIONS | |
Light Source | Ultra high LEDs |
Color Available | Red, Green, White, Yellow, Blue |
LEDs Intensity | See The Users Manual |
Visible Range | 2-3nm |
Horizontal Output | 360° |
Vertical Divergence | 10° |
Flash Characters | 256 IALA recommend |
LED Life | 100,000 hours |
ELECTRICAL CHARACTERISTICS | |
Led Driver Mode | Constant Current |
Maxim Work Power | 0.5W |
Battery Capacity | 3.6V/15Ah |
Solar Power | 7W |
Solar Module Type | Monocrystalline Silicon |
Standby Current | 1mA |
Efficiency | 85% |
Light Sensitivity | 300±100 Lux |
Work Temperature | -30 - +75℃ |
MECHANISM CHARACTERISTICS | |
Lens Material | Polycarbonate |
Base Material | Polycarbonate |
Lens Dimensions | 90mm |
Focal Plane Height | 226mm |
Mounting | 4-M16/φ200mm |
Mass | 2.9kg |
Waterproof | IP65 |
Service Life | 5 years |
