YH155A
YH155A
Description:

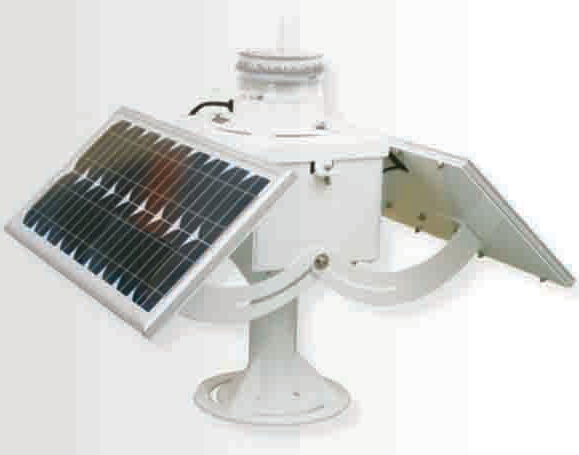

YH155A offers unique flexibility, and is available in varying configurations to suit a range of installaion and intensity requirements. The steel housing is robotically folded for guaranteed precision every time. One or two 20watt solar modules are fitted as standard, and the unit can be really equipped with ancillary equipment. A modular design, all components of the system are replaceable in the unlikely event of damage to the unit. The battery is accessed through the top of the lantern assembly, via a robust swing-hinge. Access to the user-adjustable flash and intensity settings is also achieved through this design.
Features and Specification:
Features |
·YH125 marine lantern |
·100,000 hours LED life |
·256 IALA flash codes |
·Adjustable LED intensity |
·High efficient LED driver circuit |
·Over-voltage and over-current protections |
·All surface mount technology |
·IP68 light head & IP55 battery housing |
·Maxim single 20W solar module, two 40W solar module |
·Optional Synchronization via GPS module |
·Optional RS485 interface |
SPECIFICATIONS | |
Light Source | Ultra high LEDs |
Color Available | Red, Green, White, Yellow, Blue |
LEDs Intensity | See The Users Manual |
Visible Range | 5-9nm |
Horizontal Output | 360° |
Vertical Divergence | 9° |
Flash Characters | 256 IALA recommend |
Intensity | 25%, 50%, 75%, 100% |
LED Life | 100,000 hours |
ELECTRICAL CHARACTERISTICS | |
Led Driver Mode | Constant Current |
Maxim Work Current | 650mA |
Nominal Voltage | 12V |
Solar Power | 15W/20W/30Wx2 |
Solar Module Type | Monocrystalline Silicon |
Battery Capacity | 12V/38Ah/65Ah/100Ah |
Battery Type | Lead-acid |
Standby Current | 1mA |
Light Sensitivity | 300±100 Lux |
Work Temperature | -40 - +85℃ |
MECHANISM CHARACTERISTICS | |
Lens Material | Polycarbonate |
Stand Material | Steel |
Lens Dimensions | 150mm |
Base Dimensions | 270mm |
Height | 665mm |
Mounting | OD base φ200mm |
Waterproof | Light IP68, Case IP65 |
Service Life | 10 years |
