YH155S
YH155S
Description:

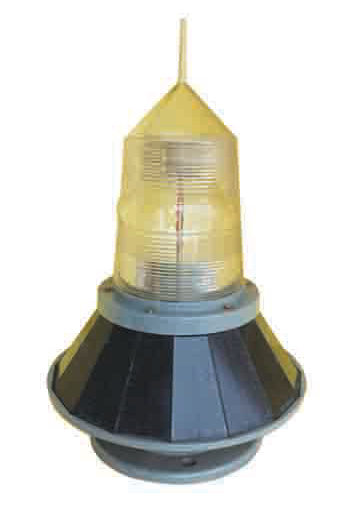

YH155S is using the latest high intensity LEDs, made of solar modules, Maintenance-free battery, Fresnel lens and base. The solar modules are angled to obtain maximum sunlight capture, allowing the unit to operate reliably in a range of low sunlight environments. There are 256 IALA user-adjustable flash characteristics. YH155S has been proven to operate as 3-4+ nautical mile in various low sunlight environments.
Features and Specification:
Features |
·8 LEDs in one tier |
·100,000 hours LED life |
·256 IALA flash codes |
·Adjustable LED intensity |
·High efficient LED driver circuit |
·Over-voltage and over-current protections |
·NiMH battery |
·All surface mount technology |
·Polycarbonate housing |
·Optional Bluetooth controller |
SPECIFICATIONS | |
Light Source | Ultra high LEDs |
Color Available | Red, Green, White, Yellow, Blue |
Visible Range | 3-4nm |
Horizontal Output | 360° |
Vertical Divergence | 10° |
Flash Characters | 256 IALA recommend |
LED Life | 100,000 hours |
ELECTRICAL CHARACTERISTICS | |
Led Driver Mode | Constant Current |
Maxim Work Power | 0.5W |
Battery Capacity | 3.6V/52Ah |
Solar Power | 11W |
Solar Module Type | Monocrystalline Silicon |
Standby Current | 1mA |
Efficiency | 85% |
Light Sensitivity | 300±100 Lux |
Work Temperature | -30 - +75℃ |
MECHANISM CHARACTERISTICS | |
Lens Material | Polycarbonate |
Base Material | Polycarbonate |

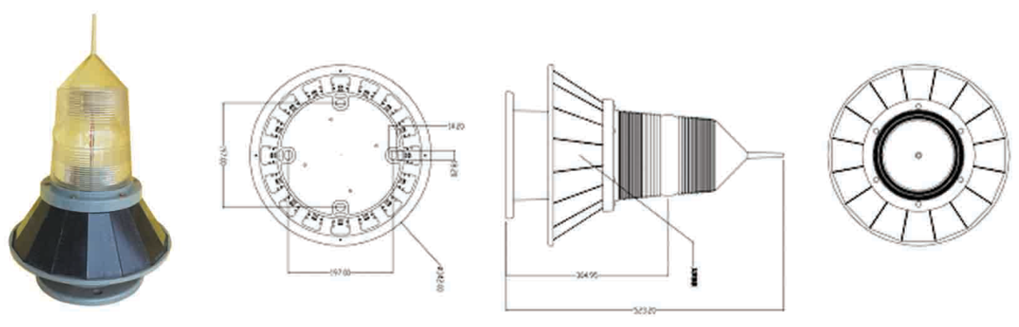

Lens Dimensions | 155mm |
Focal Plane Height | 310mm |
Mounting | 4-M16/φ2006mm |
Mass | 6.7kg |
Waterproof | IP65 |
Service Life | 5-10 years |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
