YH130
YH130
Description:

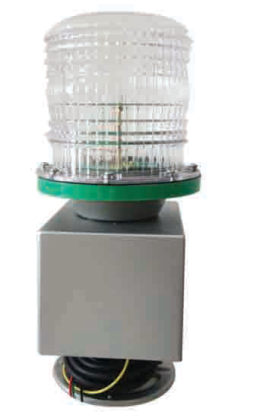

The YH130 is one of the most advanced LED marine lanterns on the market. With multi-array LEDs controlled by microprocessor, YH130 can meet the varied needs of Port and Harbour Authorities. YH130 marine lanterns are designed to operate in all marine environments. YH130 has been proven to operate as 2-3+ nautical mile in various low sunlight environments.
Features and Specification:
Features |
·8 LEDs in one tier configurations |
·100,000 hours LED life |
·256 IALA flash codes |
·Adjustable LED intensity |
·High efficient LED driver circuit |
·Over-voltage and over-current protections |
·Reverse polarity protection |
·All surface mount technology |
·IP55 waterproof |
·Optional Synchronization via GPS module |
·Optional RS485 interface |
·Optional Bluetooth controller |
SPECIFICATIONS | |
Light Source | Ultra high LEDs |
Color Available | Red, Green, White, Yellow, Blue |
LEDs Intensity | See The Users Manual |
Intensity | 25%, 50%, 75%, 100% |
Visible Range | 2-3nm |
Horizontal Output | 360° |
Vertical Divergence | 10° |
Flash Characters | 256 IALA recommend |
LED Life | 100,000 hours |
ELECTRICAL CHARACTERISTICS | |
Led Driver Mode | Constant Current |
Maxim Work Power | 0.7W(without GPS) |
Input Voltage Range | 3.6V-16V |
Standby Current | 5mA |
Efficiency | 0.85 |
Light Sensitivity | 300±100 Lux |
Work Temperature | -30 - +75℃ |

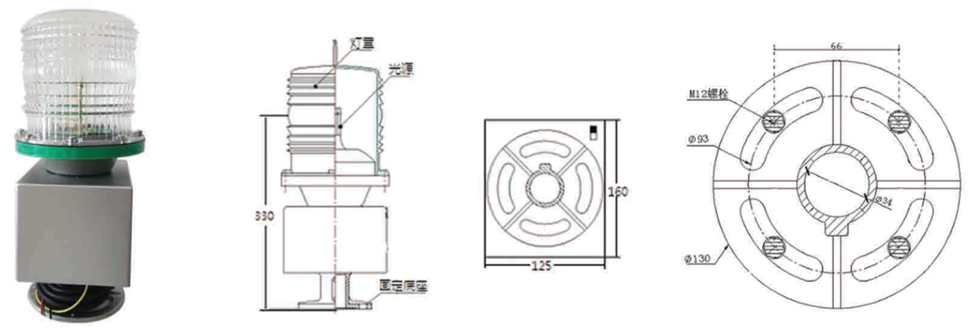

MECHANISM CHARACTERISTICS | |
Lens Material | Polycarbonate |
Base Material | Cast Aluminum |
Lens Dimensions | 130mm |
Focal Plane Height | 332mm |
Mounting | 4-M12/φ93mm |
Mass | 2.0kg |
Waterproof | Light IP55 |
Service Life | 5 years |
