Products Introduction

YH125S


Description:

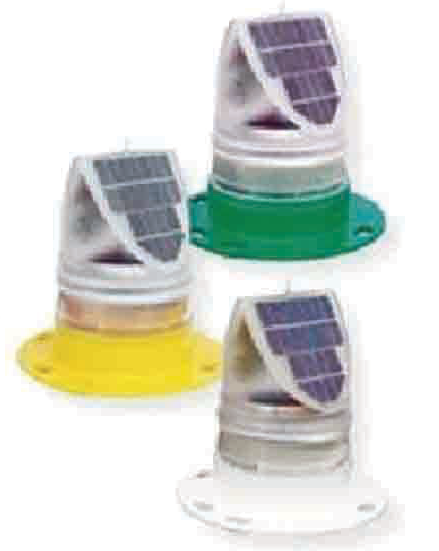

The YH125S is using the latest high intensity LEDs, with lithium battery and solar modules. The solar modules are angled to obtain maximum sunlight capture, allowing the unit to operate reliably in a range of low sunlight environments. The YH125S can be installed in minutes and requires no operator intervention. The flash characters are easily adjusted onsite by users, and the lantern has a permanent ON/OFF switch for easy storage. The lantern is completely sealed and good waterproof design(IP68). The YH125S has been proven to operate as 2-3+ nautical mile in various low sunlight environments.


Features and Specification:



Features

·12, 18 or 36 LEDs

·100,000 hours LED life

·256 IALA flash codes

·Adjustable LED intensity

·High efficient LED driver circuit

·Over-voltage   and over-current protections

·Reverse   polarity protection

·Lithium   battery, fast charge

·All surface   mount technology

·IP68 waterproof

·Expanded PTFE provides protection against dust and liquid contaminants along with equalization of ambient pressure for lantern integrity

·Polycarbonate   housing


SPECIFICATIONS

Light Source

Ultra high LEDs

Color Available

Red, Green,   White, Yellow, Blue

LEDs Intensity

See The User   Manual

Visible Range

2-3nm

Horizontal   Output

360°

Vertical   Divergence

Flash Characters

256 IALA   recommend

Intensity

25%, 50%, 75%,   100%

LED Life

100,000 hours

ELECTRICAL   CHARACTERISTICS

Led Driver Mode

Constant Current

Maxim Work Power

0.72W

Battery Capacity

3.7V/10400mAh

Solar Power

3W

Solar Module   Type

Monocrystalline   Silicon

Standby Current

1mA

Efficiency

>87%

Light   Sensitivity

300±100 Lux

Work Temperature

-40 - +85

MECHANISM   CHARACTERISTICS

Lens Material

Polycarbonate

Base Material

Polycarbonate

Lens Dimensions

150mm

Base Dimensions

230mm

Height

240mm

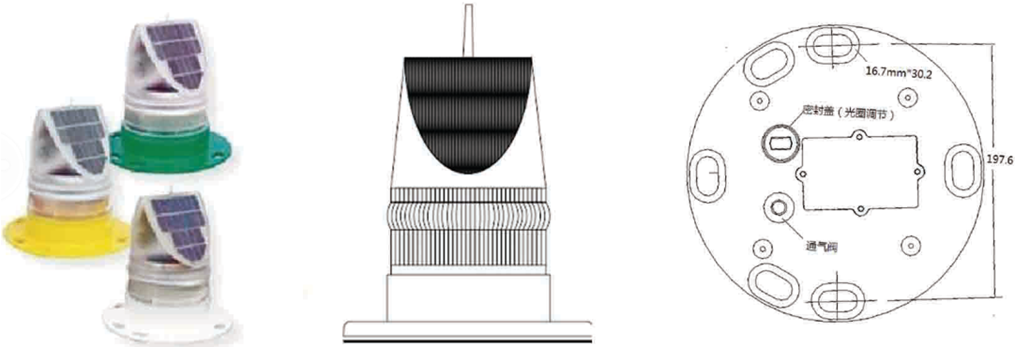

Mounting

6-M16.7/φ197.6mm

Mass

1.2kg

Waterproof

IP68

Service Life

10 years
