YH125H
YH125H
Description:

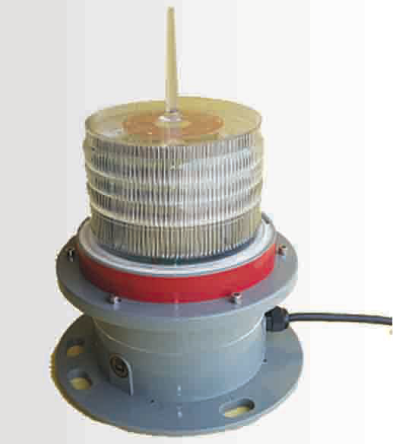

YH125H is one of the most advanced LED marine lanterns on the market. With multi-array LEDs controlled by microprocessor, YH125H can meet the varied needs of Port and Harbour Authorities. YH125H marine lanterns are designed to operate in all marine environments. Utilizing high gain internal refracting lenses, these lanterns produce a maximum efficiency light achieving performance range of 3 to 7NM.
Features and Specification:
Features |
·LED array is available in one, two or three tier configurations, each tier consists 36 LEDs |
·100,000 hours LED life |
·256 IALA flash codes |
·Adjustable LED intensity |
·High efficient LED driver circuit |
·Over-voltage and over-current protections |
·Repairing easily |
·Reverse polarity protection |
·All surface mount technology |
·IP67 waterproof |
·Expanded PTFE provides protection against dust and liquid contaminants along with equalization of ambient pressure for lantern integrity |
·Polycarbonate housing |
·Optional Synchronization via GPS module |
SPECIFICATIONS | |
Light Source | Ultra high LEDs |
Color Available | Red, Green, White, Yellow, Blue |
LEDs Intensity | See The User Manual |
Visible Range | 3-7nm |
Horizontal Output | 360° |
Vertical Divergence | 9° |
Flash Characters | 256 IALA recommend |
Intensity | 25%, 50%, 75%, 100% |
LED Life | 100,000 hours |
ELECTRICAL CHARACTERISTICS | |
Led Driver Mode | Constant Current |
Maxim Work Current | 650mA |
Input Voltage Range | 4-16V |
Rated Voltage | 12V |
Standby Current | 1mA |
Efficiency | 87% |
Light Sensitivity | 300±100 Lux |
Work Temperature | -40 - +85℃ |
MECHANISM CHARACTERISTICS | |
Lens Material | Polycarbonate |
Base Material | Polycarbonate |
Lens Dimensions | 150mm |
Base Dimensions | 230mm |
Height | 240mm |
Mounting | 6-M16.7/φ197.6mm |
Mass | 1.5kg |
Waterproof | IP67 |
Service Life | 10 years |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
