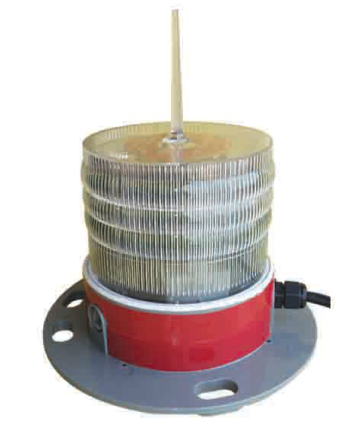

YH125
YH125
Description:
The YH125 is one of the most advanced LED marine lanterns on the market. With multi-array LEDs controlled by microprocessor, YH125 can meet the varied needs of Port and Harbour Authorities. YH125 marine lanterns are designed to operate in all marine environments. Utilizing high gain internal refracting lenses, these lanterns produce a maximum efficiency light achieving performance range of 3 to 7NM.
Features and Specification:
Features |
·LED array is available in one, two or three tier configurations, each tier consists 36 LEDs |
·100,000 hours LED life |
·256 IALA flash codes |
·Adjustable LED intensity |
·High efficient LED driver circuit |
·Over-voltage and over-current protections |
·Reverse polarity protection |
·All surface mount technology |
·IP68 waterproof |
·Polycarbonate housing |
·Optional Synchronization via GPS module |
SPECIFICATIONS | |
Light Source | Ultra high LEDs |
Color Available | Red, Green, White, Yellow, Blue |
LEDs Intensity | See The User Manual |
Visible Range | 3-7nm |
Horizontal Output | 360° |
Vertical Divergence | 9° |
Flash Characters | 256 IALA recommend |
Intensity | 25%, 50%, 75%, 100% |
LED Life | 100,000 hours |
ELECTRICAL CHARACTERISTICS | |
Led Driver Mode | Constant Current |
Maxim Work Current | 650mA |
Input Voltage Range | 4-16V |
Rated Voltage | 12V |
Standby Current | 1mA |
Efficiency | 87% |
Light Sensitivity | 300±100 Lux |
Work Temperature | -40 - +85℃ |
MECHANISM CHARACTERISTICS | |
Lens Material | Polycarbonate |
Base Material | Polycarbonate |
Lens Dimensions | 150mm |
Base Dimensions | 230mm |
Height | 240mm |
Mounting | 6-M16.7/φ197.6mm |
Mass | 1.3kg |
Waterproof | IP68 |
Service Life | 10 years |
