TRIANGLE PLATE
TRIANGLE PLATE

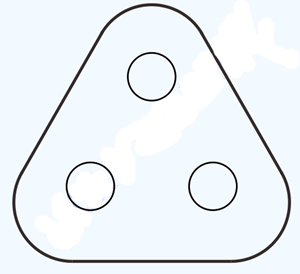

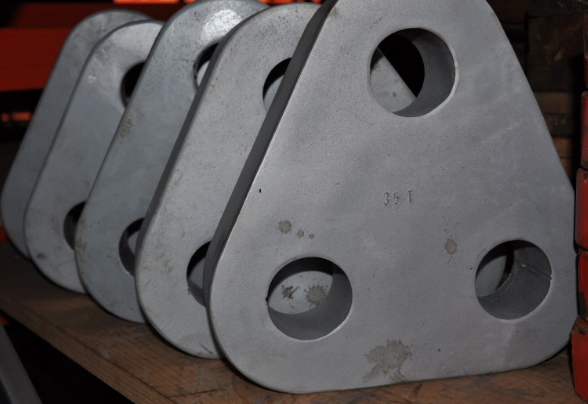

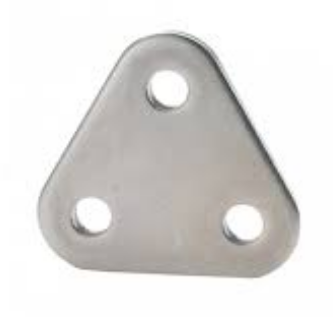

Product showing:
Description:
1.Model Type: Marine Anchor Chain Accessories
2.Application: Anchor Chain
3.Standard Production
4.Grade: U2, U3
5.Material: Steel
6.Nominal Diameter: 12.5mm to 162mm
7.Surface: Painted, Galvanized
8.Certificate: LR CCS DNV-GL ABS RINA BV KR ClassNK RS
9.Customized Service
Specification:
Dia 12.5 ~ 162 mm
| WLL(T) | MBL(T) | Dimension(mm) | Weight | |||
| A | H | T | S | (kgs) | ||
| 9.5 | 47.5 | 100 | 35 | 40 | 35 | 5 |
| 12 | 60 | 110 | 40 | 40 | 40 | 6.5 |
| 13.5 | 67..5 | 120 | 42 | 45 | 425 | 8.5 |
| 17 | 85 | 130 | 45 | 45 | 50 | 9.5 |
| 25 | 125 | 140 | 55 | 50 | 65 | 13.5 |
| 35 | 175 | 150 | 60 | 60 | 70 | 19 |
| 55 | 275 | 180 | 75 | 80 | 85 | 37.5 |
| 85 | 425 | 220 | 90 | 90 | 110 | 62 |
| 120 | 600 | 124 | 105 | 110 | 130 | 95 |
| 150 | 750 | 260 | 115 | 130 | 135 | 133 |
| 175 | 875 | 290 | 115 | 140 | 145 | 163 |
| 200 | 1000 | 380 | 140 | 150 | 160 | 282 |
Our Product List of Anchor Chain Accessories:
Kenter Shackle, Joining Shackle, End Shackle, Swivel Shackle, Forelock Shackle, Buoy Shackle, Pear Shaped Shackle, C Shaped Connecting Shackle, Swivel, Swivel Group, Triangle Plate, Round Link, End Link, Enlarged Link
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
