SWIVEL
SWIVEL SWIVEL SWIVEL SWIVEL
< Go to  ANCHOR CHAIN

SWIVEL

Material:Carbon Steel Surface:Powder Coating Name:Swivel Shackle Process:Forging Type:US Type Shape:Swivel Shackle


+8613355655259
+86551-68997282
Products Introduction

SWIVEL

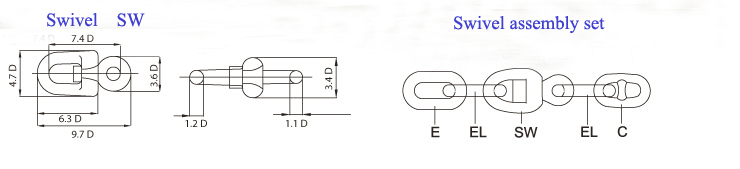

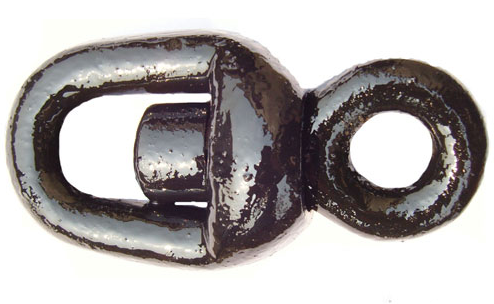

Product showing:



Description:


I Type of Anchor Chain:
1. According to the Production Method Classification:Cast Steel Anchor Chain,Welding Anchor Chain,Forged Anchor Chain
2. According to the Link Structure Classification:Stud link Anchor Chain and Studless Link Anchor Chain
3. According to Usage Classification:Marine Anchor Chain and Marine Mooring Chain
4. According to the Steel Grade Classification:AM1,AM2,AM3


II Main Features:
1. Production Process: Cutting BarHeatingBendingWeldingTrimmingStud SettingHeat TreatmentProof &Breaking Load TestOptical CrosstalkDipping Lacquer
2. Fitting:Kenter Shackle,Joining Shackle,Swivel Shackle Type A,Swivel Shackle Type B,Anchor Shackle,Swivel.
3. The main material of anchor chain is Manganese Steel.
4. The Measure Strength of Anchor Chain
Size is the diameter of chain ring,strength is on the basis of common link,the unit of standard length is shackle,1shackle=27.5 meter.
5. Anchor Chain used to link to anchor and ship,transfer and buffer the external forces.


Specification:



CHAIN DIAMETER

KENTER

SHACKLE

JOINING

SHACKLE

ANCHOR

SHACKLE

SWIVEL

SWIVEL

FORERUNNER

SWIVEL

SHACKLE

SWIVEL  SHACKLE

TYPE A

TYPE B

INCHES

MM

KG

KG

KG

KG

KG

KG

KG

43/78

14

0.6

0.6

1.5

1.1

2.4

-

-

17/27

16

0.6

0.9

1.5

1.3

3.2

-

-

31/45

17.5

0.8

1.3

2.1

1.7

4.2

-

-

3/4

19

1.1

1.8

2.4

2.1

5.5

-

-

13/16

20.5

1.3

2.2

3.2

2.2

6.1

-

-

7/8

22

1.6

2.6

3.9

3.5

8.7

17.5

7.6

15/16

24

2.1

3.4

5.1

4.5

10.9

17.5

9.9

1

25.5

2.5

4.5

6.7

5.7

14.2

37.6

12.5

11/16

27

3.3

5.1

8.1

7.2

17.4

37.6

15.7

13/16

30

4.1

6.3

10

9

22.3

91

19.4

11/4

31.5

5

8.2

11.7

10.1

26.6

91

23.4

15/16

33.5

6

9.5

14.2

12.7

32.2

107

28

13/8

35

6.8

11.3

16.5

14.9

38.3

107

33.4

11/2

38

8.4

13.4

19.5

17.4

42.6

107

39.4

19/16

39.5

9.6

15.5

22.8

20.2

50.4

115

46

15/8

41.5

11

18.1

26

25.4

59.5

115

53

13/4

44.5

12.4

20.2

29.7

26.6

66.5

139

61

113/16

46

14.1

23.3

34.3

30.6

76.7

139

70

17/8

47.5

16.7

27.5

38

35

89.8

139

79

115/16

49

19

31.6

45.2

40.5

101.8

264

89

2

51

20.3

34

50.9

49.5

117.2

264

101

21/8

54

23.7

38.5

53.8

50.5

124.9

270

113

23/16

55.5

26.7

46

63

55

137.9

270

126

25/16

58.5

27.2

46.8

70

64.6

156.4

294

140

23/8

60.5

27.7

51

77.5

71.3

171.3

294

155

27/16

62

35

59.2

86.3

77.7

187.4

294

171

21/2

63.5

38.4

62.7

96.3

83.3

202.2

403

188

25/8

66.5

42.3

75

99.6

88.7

223.1

403

206

211/16

68

46

76.7

102.6

100

247.5

403

225

23/4

69.5

48.7

90

126.2

107.8

269.3

464

246

27/8

73

53

95

138.2

125.6

306.2

464

278

3

76

60.7

107

146

143.8

347.8

464

314

31/16

77.5

65.5

116

164

154

379.4

749

340

33/16

81

75

130

190

188

435.7

749

380

35/16

84

90

136

212

198

464

931

424

37/16

87.5

96

160

237

215

521.7

931

472

39/16

90.5

108

176

245

238

571

1191

522

35/8

92

114

196

257

252

616

1191

558

33/4

95

128

215

300

269

656

1191

614

313/16

97

133

222

335

301

713.1

-

654

315/16

100

146

252

353

330

785

1464

717

4

101.5

158

267

378

344

835.5

1464

761

41/8

105

160

294

385

387

916

1466

830

41/4

108

180

305

420

428

991

1466

879

43/8

111

198

325

463

448

1061

1830

980

41/2

114.5

204

345

485

460

1116

1830

1062

45/8

117.5

225

365

528

475

1177

1830

1147

43/4

120.5

250

400

570

547

1332

-

-

49/16

122

263

425

602

649

1480

-

-

47/8

124

290

465

632

680

1550

-

-

5

127

312

499

679

729

1663

-

-

51/8

130

333

536

729

784

1797

-

-

51/4

133.5

350

561

762

820

1862

-

-

53/8

136.5

392

627

852

912

2065

-

-

55/8

143

436

698

949

1012

2315

-

-

53/4

146

485

774

1053

1124

2578

-

-

6

152.5

537

856

1164

1238

2839

-

-

62/11

157

591

943

1283

1360

3102

-

-

63/8

162

651

1036

1410

1490

3401

-

-


Service:



We provide drawing design and manufacturing.

Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.

Quick delivery.

Quality products.

Served in marine industry more than twenty years.

Enjoyed excellent reputation from global customers.
