G2150 SHACKLE
G2150 SHACKLE

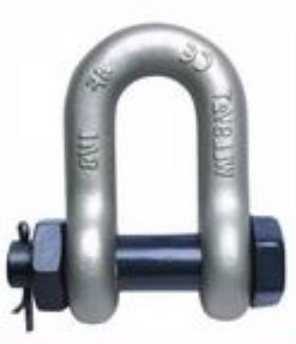

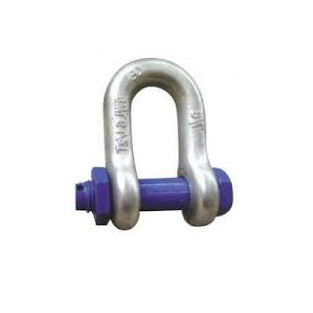

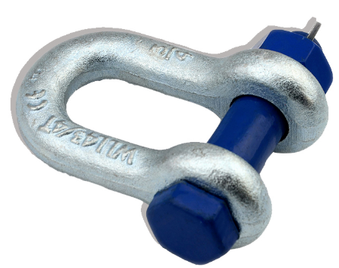

Product showing:
Description:
The bow shackle is common produce used in the offshore industry, this shackle can be used in temporary and permanent in the mooring system, finish is hot dip galvanized.
Specification:

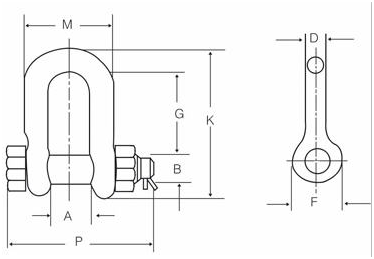

Type | Working Load | Dimensions(mm) | Weight | |||||||
(in.) | (t) | A | B | D | F | G | K | M | P | (kg) |
3/16 | 0.33 | 9.7 | 6.7 | 4.8 | 14.2 | - | - | - | 32.8 | - |
1/4 | 0.5 | 11.9 | 7.9 | 6.4 | 15.5 | 19.1 | 40.4 | 24.6 | 39.6 | 0.06 |
5/16 | 0.75 | 13.5 | 9.7 | 7.9 | 19.1 | 25.4 | 48.5 | 29.5 | 46.2 | 0.1 |
3/8 | 1 | 16.8 | 11.2 | 9.7 | 23.1 | 31 | 58.4 | 35.8 | 55.1 | 0.15 |
7/16 | 1.5 | 19.1 | 12.7 | 11.2 | 26.9 | 36.1 | 67.6 | 41.1 | 63.8 | 0.22 |
1/2 | 2 | 20.6 | 16 | 12.7 | 30.2 | 41.4 | 77 | 46 | 71.1 | 0.34 |
5/8 | 3.25 | 26.9 | 19.1 | 16 | 38.1 | 50.8 | 95.3 | 58.7 | 89.7 | 0.67 |
3/4 | 4.75 | 31.8 | 22.4 | 19.1 | 46 | 60.5 | 115.1 | 70 | 103.4 | 1.14 |
7/8 | 6.5 | 36.6 | 25.4 | 22.4 | 53.1 | 71.4 | 135.4 | 81 | 119.6 | 1.75 |
1 | 8.5 | 42.9 | 28.7 | 25.4 | 60.5 | 81 | 150.9 | 93.7 | 134.9 | 2.52 |
11/8 | 9.5 | 45 | 31.8 | 28.7 | 68.3 | 90.9 | 172.2 | 103.1 | 149.9 | 3.45 |
11/4 | 12 | 51.6 | 35.1 | 31.8 | 76.2 | 100 | 190.5 | 115.1 | 165.4 | 4.9 |
13/8 | 13.5 | 57.2 | 38.1 | 35.1 | 84.1 | 111.3 | 210.3 | 127 | 183.1 | 6.24 |
11/2 | 17 | 60.5 | 41.4 | 38.1 | 92.2 | 122.2 | 230.1 | 136.7 | 196.3 | 8.39 |
13/4 | 25 | 73.2 | 50.8 | 44.5 | 106.4 | 146.1 | 278.6 | 162.1 | 229.8 | 14.24 |
2 | 35 | 82.6 | 57.2 | 50.8 | 122.2 | 171.5 | 311.9 | 184.2 | 264.4 | 21.2 |
21/2 | 55 | 104.9 | 70 | 66.5 | 144.5 | 203.2 | 377 | 238.3 | 344.4 | 38.56 |
3 | 85 | 127 | 82.6 | 76.2 | 165.1 | 215.9 | 428.8 | 279.4 | 419.1 | 56.36 |
31/2 | 120 | 133.4 | 95.3 | 91.9 | 203.2 | - | - | - | 482.6 | - |
4 | 150 | 139.7 | 108 | 104.1 | 228.6 | - | - | - | 501.7 | - |
Features:
Rigging hardware
Bolt type chain shackles
Thin hex head bolt-nut corter pin
Meet the requirements of federal specificaiton RR-C271D type IVB.Grade A.Class3
Well made for long lasting
Factory cheap price
OEM service,custom logo/label
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
