DETACHABLE LINK
DETACHABLE LINK
Description:
Detachable link shackle is one type of kenter shackle. It is a detachable chain connecting link. Connecting shackle is simple to operate. It connects the common links.
We supply all types of anchor shackles or other anchor chain accessories. If you want to know more information, please feel free to contact us.We’ll reply you in a short time.
Specification:
Chain size | A | B | C | D | E | F | G | Weight(kg) | Proof test(kg) | Break Test(kg) |
24-25 | 152 | 102 | 35 | 25 | 29 | 31 | 17 | 2.3 | 38000 | 54300 |
27-29 | 172 | 114 | 40 | 29 | 32 | 35 | 19 | 3.3 | 49200 | 70400 |
30-32 | 191 | 127 | 44 | 32 | 36 | 39 | 21 | 4.6 | 59500 | 84900 |
33-35 | 210 | 140 | 48 | 35 | 40 | 43 | 23 | 6.2 | 70700 | 101300 |
36-38 | 229 | 152 | 53 | 38 | 43 | 47 | 26 | 7.9 | 83300 | 118900 |
40-42 | 248 | 165 | 57 | 42 | 47 | 50 | 28 | 10 | 102000 | 143400 |
43-44 | 267 | 178 | 62 | 45 | 50 | 56 | 30 | 12.5 | 111900 | 159900 |
46-48 | 286 | 191 | 64 | 48 | 55 | 60 | 32 | 14.5 | 130000 | 185100 |
50-51 | 305 | 197 | 64 | 51 | 59 | 64 | 34 | 16.3 | 145400 | 207700 |
Features:
Grade U3, R3, R3S, R4 available.
Size from No. 4 to No. 11 available.
Our company has more than 15 years in exporting anchor chain accessories to all over the world, we know very well how to meet different requirements from different clients.
Quality Control:
Manufacturing process quality control from raw material to final product.
FE Analysis to optimize design.
Fatigue analysis on request.
All parts forged.
Advanced program control swage hammer and forging machinery.
CNC machining production line.
Magnetic power testing, ultrasonic testing, and fluorescent penetrate inspection.
Load test machine up to 4000Ton.
All tests witness by class society on request.

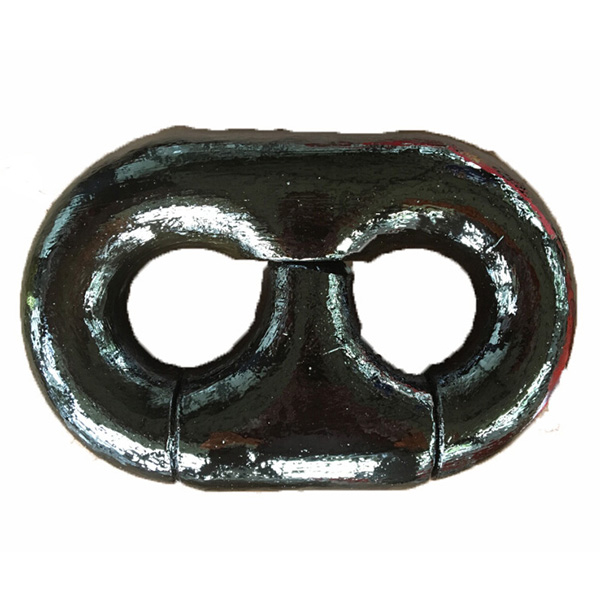

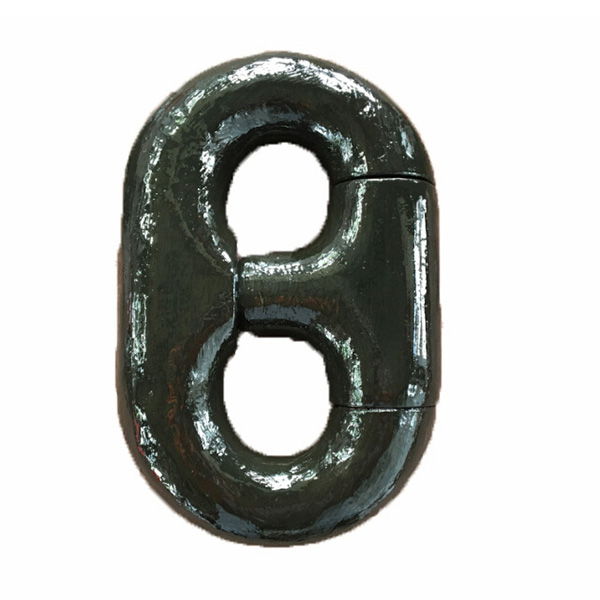

Pictures:

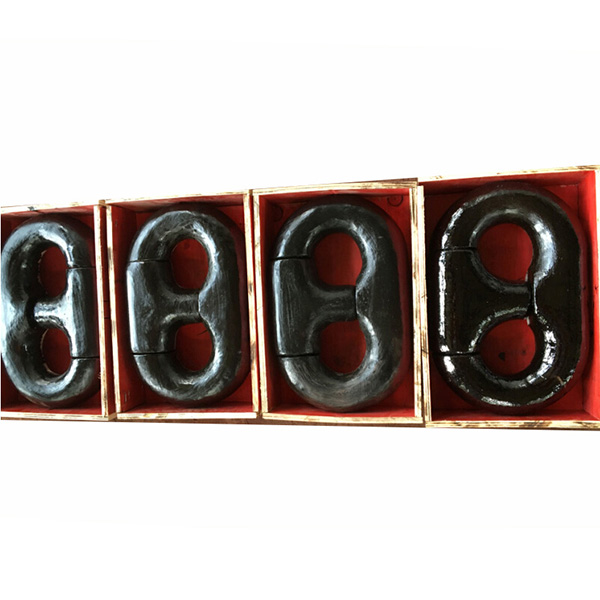

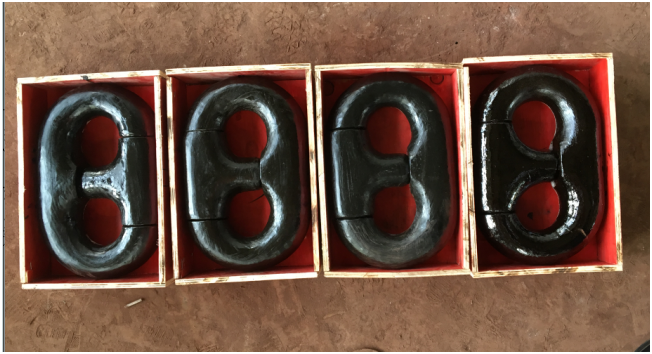

Packing:
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
