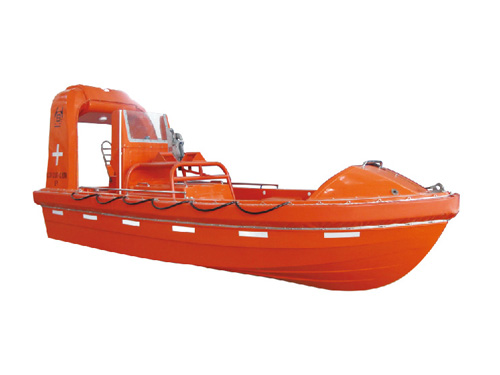

RIGID RESCUE BOAT

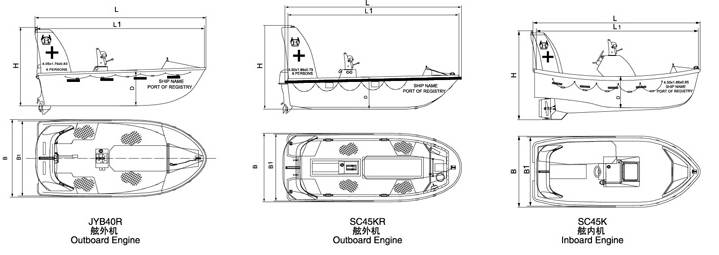

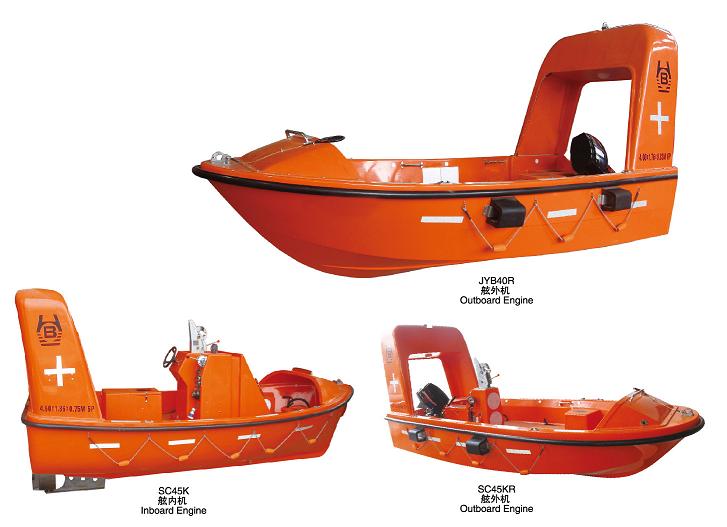

Model | JYB40R | SC45KR | SC45K |
Particulars | Outboard Engine | Outboard Engine | Inboard Engine |
Length(L:m) | 4.08 | 4.65 | 4.64 |
FRP Length(L1:m) | 4 | 4.5 | 4.5 |
Breadth(B:m) | 1.86 | 1.86 | 1.96 |
FRP Breadth(B1:m) | 1.76 | 1.72 | 1.86 |
Height(H:m) | 2.2 | 2.2 | 2.4 |
Depth(D:m) | 0.83 | 0.75 | 0.85 |
Fender | Rubber | Rubber | Rubber |
Craft weight(kg) | 620 | 655 | 845 |
Persons(P:82.5kg/P) | 6 | 6 | 6 |
Full Load(kg) | 1115 | 1150 | 1340 |
Speed(full loaded:knots) | ≥6 | ≥6 | ≥6 |
Engine | MERCURY 25 | MERCURY 25/40/60 | 380J-3 |
Power(kW) | 18.4 | 18.4/29.4/44.1/18.4 | 20.6/17.6/18.4 |
Model | JYB55KR | |
Particulars | Outboard Engine | Inboard Engine |
Length(L:m) | 5.5 | 5.5 |
FRP Length(L1:m) | 5.3 | 5.3 |
Breadth(B:m) | 2.06 | 2.06 |
FRP Breadth(B1:m) | 1.86 | 1.86 |
Height(H:m) | 2.36 | 2.36 |
Depth(D:m) | 0.9 | 0.9 |
Fender | Foam | Foam |
Craft weight(kg) | 1088 | 1700 |
Persons(P:82.5kg/P) | 6 | 6 |
Full Load(kg) | 1583 | 2195 |
Speed(full loaded:knots) | ≥8(3P) / ≥20(6P) | ≥8(3P) / ≥20(6P) |
Engine | MERCURY 60/90 | YANMAR:4LHA-HTP/DTP/STP |
Power(kW) | 44.1/66.2 | YANMAR:118/147/177 |
Product details: |
1.Comply with the requirements and rules of SOLAS and amendment 1996, LSA Code, MSC.218(82), MSC.272(85), MSC.320(89 MSC.81 (70), MSC. 226(82), MSC.274(85), MSC.321(89). |
2.Boat body material: fire-pretended type FRP; |
3.Fit the self-righting device. It can self-righting by itself when capsized; |
4.Fit the off-load release mechanism with the safety pin; |
5.Equipments is equipped according to SOLAS requirement; |
6.The surface for walking is the antiskid; |
7.Equip a manual pump remove the pending in the boat; |
8.Rubber fender is fitted around the boat; |
9.The deck can self-motion drainage; |
10.Runing time of rescue boat when full-loaded & full-speed is more than 4 hours. |
-
