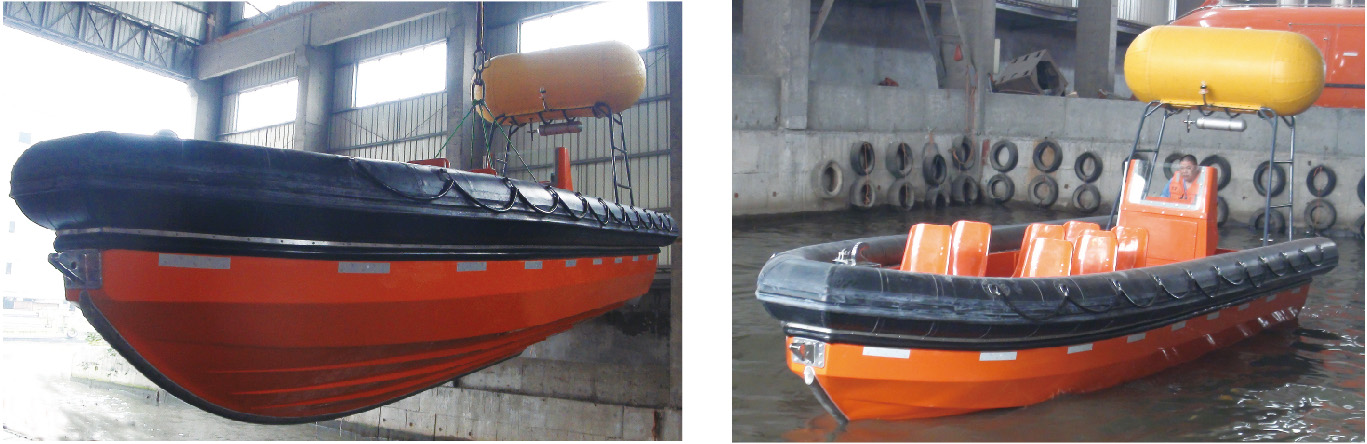

RAMP LAUNCHING FAST RESCUE BOAT
Model | JYB65W | JYB78W |
Particulars | Inboard Engine | Inboard Engine |
Length(L:m) | 6.5 | 7.8 |
FRP Length(L1:m) | 6.02 | 7.18 |
Breadth(B:m) | 2.45 | 2.7 |
FRP Breadth(B1:m) | 2.05 | 2.26 |
Height(H:m) | 2.68 | 2.75 |
Depth(D:m) | 1.1 | 1.2 |
Fender | EVA foam or Hypalon tube | |
Craft weight(kg) | 1950 | 2500 |
Persons(P:82.5kg/P) | 9 | 12 |
Full Load(kg) | 2692.5 | 3490 |
Speed(knots) | ≥8(12P) / ≥20(3P) | |
Engine | YANMAR:4LHA-HTP/DTP/STP | YANMAR:4LHA-STP |
Power(kW) | YANMAR:118/147/177 | 177 |
Product details: |
1.Comply with me requirements and rules of SOLAS and amendment 1996, LSA Code, MSC.218(82), MSC.272(85), MSC.320(89), MSC.81(70), MSC.226(82), MSC.274(85), MSC.321(89) |
2.Boat body material: fire-pretended type FRP; |
3.Fit the self-righting device. It can self-righting by itself when capsized; |
4.Equipments is equipped according to SOLAS requirement; |
5.The surface for walking is the antiskid; |
6.Equip a manual pump remove the ponding in the boat; |
7.Rubber fender is fitted around the boat; |
8.The deck can self-motion drainage; |
9.Running time of rescue boat when full-loaded & full-speed is more than 4 hours. |
10.Speed:^28knots(3P),20knots(fullloaded) |
11.The boat could be launched by davit or by ramp at the stem of vessel. |
-
