OPEN TYPE LIFEBOAT
Model | JYB35K | JYB45K | JYB52K | JYB60K | JYB70K | JYB75K | JYB80K |
Particulars | |||||||

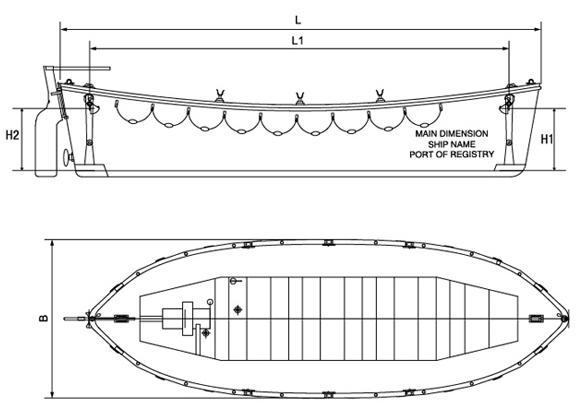

Length(L:m) | 3.5 | 4.5 | 5.2 | 6 | 7.05 | 7.5 | 8 |
Hook distance(L1:m) | 2.83 | 3.8 | 4.5 | 5.3 | 6 | 6.5 | 7 |
Breadth(B:m) | 1.6 | 1.86 | 2.1 | 2.1 | 2.35 | 2.55 | 2.65 |
Depth(D:m) | 0.8 | 0.85 | 0.95 | 0.95 | 1.03 | 1.05 | 1.1 |
Hook height FWD(H1:m) | 0.76 | 0.81 | 0.91 | 0.91 | 0.96 | 1.1 | 1.18 |
Hook height AFT(H2:m) | 0.76 | 0.81 | 0.91 | 0.91 | 0.96 | 1.1 | 1.18 |
Craft weight(kg) | 695 | 770 | 1364(674) | 1320(715) | 1730(1329) | 1887(1475) | 2249(1645) |
Persons(P) | 7 | 10 | 16(16) | 22(25) | 33(36) | 43(46) | 52(55) |
Full Load(kg) | 1220 | 1520 | 2564(1874) | 2970(2590) | 4205(4029) | 5112(4925) | 6149(5770) |
Speed | ≥10km/h | ≥6knots | |||||
Engine | ZS1100 | ZX2105C-1 | |||||
Power(HP) | 15 | 24 | |||||
Rotate speed(rpm) | 2200 | 1500 | |||||
Remark | Only used in inland river | The particulars in bracket is without engine |
Product details: |
The open type lifeboat is manufactured with compliance with the Amendments to the SALAS, 1974) . The hull of lifeboat is made of the tire reinforced plastic(F.R.P.) The space between the inside and outside hull is filled with polyurethane foam whic will supply sufficient buoyancy for the boat. The boat will be afloat with the help of to foam even the part of boat underneath the water damaged. This type of boat is use for the life-saving on the sea. |
-
