INFLATED FENDER RIGID FAST RESCUE BOAT

ALA MARINE is the leading exporter and manufacturer,professional production of anchor chains, anchors, buoys,outfittings and other marine products.


+8613355655259
+86551-68997282
Products Introduction

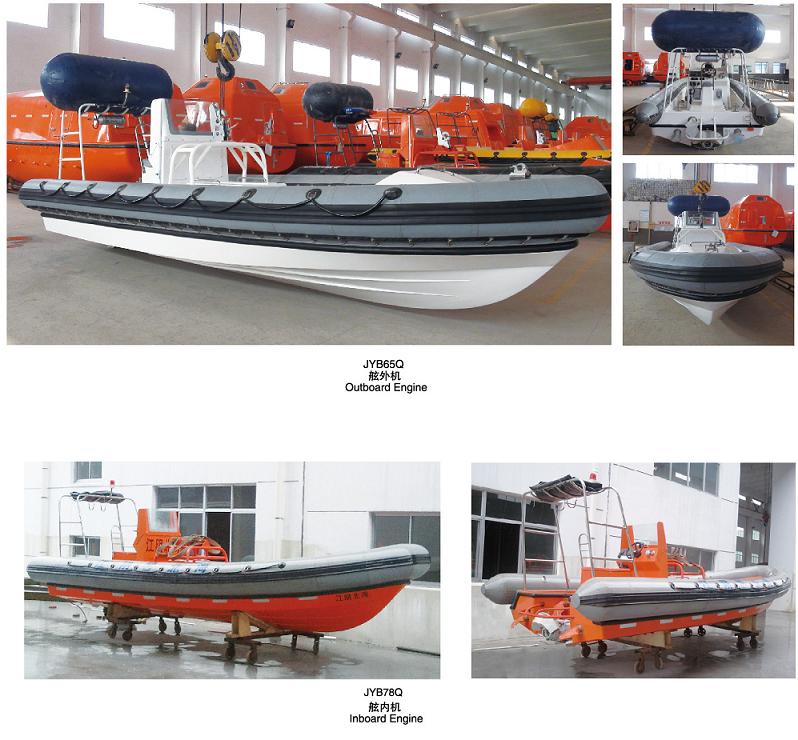

Model

JYB65Q

JYB78Q

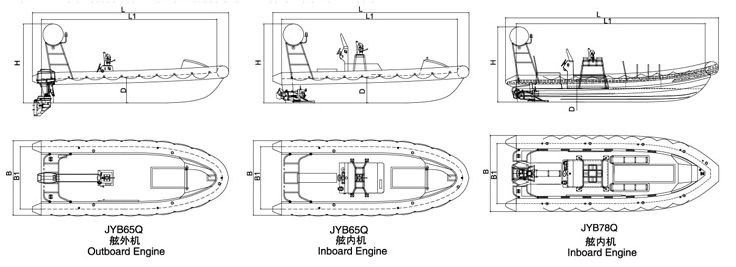

Particulars

Outboard Engine

Inboard Engine

Inboard Engine

Length(L:m)

6.8

6.8

7.88

FRP Length(L1:m)

6.21

6.21

7.18

Breadth(B:m)

2.45

2.45

2.9

FRP Breadth(B1:m)

2.05

2.05

2.26

Height(H:m)

2.3

2.3

2.55

Depth(D:m)

0.9

0.9

0.78

Fender

Hypalon tube

Hypalon tube

Hypalon tube

Craft weight(kg)

1450

1750

2265

Persons(P:82.5kg/P)

9

9

15

Full Load(kg)

2192.5

2492.5

3502.5

Speed(knots)

≥8(9P) / ≥20(3P)

≥8(9P) / ≥20(3P)

≥8(15P) / ≥32(3P)

Engine

MERCURY 60/75/90

YANMAR:4LHA-HTP/DTP/STP
STEYR:164M40/144M38/236K43

YANMAR:4LHA-STP
YANMAR:6LHA-STP

Power(kW)

44.1/55.1/66.2

YANMAR:118/147/177
STEYR:120/106/185

177
232

Product details:

1.Comply with the requirements and rules of SOLAS and amendment 1996, LSA Code, MSC.218(82),

 MSC.272(85), MSC.320(89) 8 MSC.81 (70), MSC.226(82), MSC.274(85), MSC.321 (89).

2.Boat body material: fire-pretended type FRP. Fit the self-righbng device. It can seH-righting by itself when

capsized.

3.1nflate fender is surrounded the hull, it increases buoyancy & righting moment, and satisfies design requirement.

4.Fit the off-load & stainlessness release mechanism with the safety pin;

5.Equipments is equipped according to SOLAS requirement;

6.The walk around deck has an anti-slip surface. Gangways are in the boat. Stainless steel handrails are arranged on the both gunwale to increase

the security.

7.Running time of rescue boat when full-loaded & full-speed is more than 4 hours.
