WELDED INCLINED BOLLARD
WELDED INCLINED BOLLARD

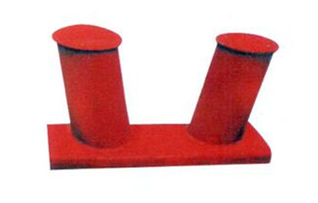

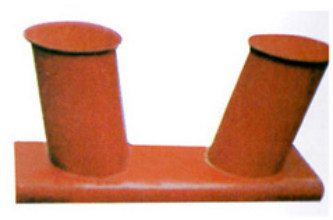

Product showing:
Description:
1.Long working life
2.High quality with competitive price.
3.Can be customized.
This product can be used for berthing and mooring of ships.
Note:
DH is single baseplate welded inclined bollard
SH is double baseplates welded inclined bollard
Bollard is a device settled on shore, used to bond the cable when vessel mooring.
Material: Cast steel, cast iron.
Process:casting, forging, welding, casting

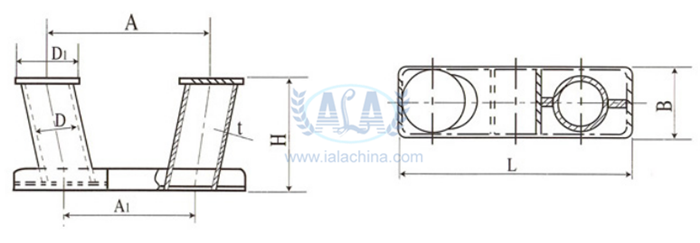

Specification:
Type | Max. Dia. Of Wire Ropes | Max. Dia. Of Hemp Ropes | D | D1 | L | B | A | A1 | H | t | kg |
SH | 15.5 | 125 | 125 | 140 | 660 | 170 | 458 | 380 | 295 | 8 | 25.2 |
17.5 | 150 | 150 | 165 | 750 | 200 | 525 | 432 | 348 | 8 | 33.3 | |
19.5 | 170 | 175 | 190 | 850 | 235 | 630 | 524 | 394 | 9 | 49.2 | |
22.5 | 200 | 200 | 220 | 950 | 270 | 676 | 564 | 436 | 10 | 68.8 | |
26 | 225 | 250 | 270 | 1150 | 340 | 765 | 640 | 540 | 12 | 95.7 |
Packaging & Delivery:
Packaging Details:Export packaging.
Port:China main port
Lead Time :About 10 days.
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
