ROLLER TYPE CHAIN STOPPER

Place Of Orgin:China Part: Piston Material:Steel Application:Mooring Equipment Norminal Dia:44-132 Name:ROLLER TYPE CHAIN STOPPER

+8613355655259

+86551-68997282

johny@ialachina.com

Chat Online Send Message

Products Introduction| Related Products| Inquiry

Products Introduction

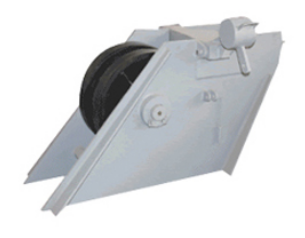

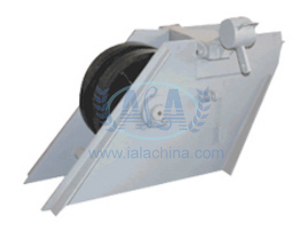

ROLLER TYPE CHAIN STOPPER

Product showing:

Description:

Material:Steel

^{Certificate:CCS,ABS,LR,BV,NK,RINA,KR
Surface:bituminous paint}

^{Norminal Dia:44-132}

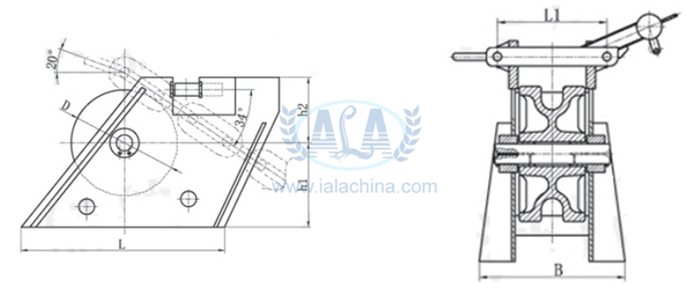

^{Specification:}

Norminal Dia	Anchor Chain Dia	L	L1	D	h1	h2	B
44	42-44	1000	370	484	392	281	380
48	46-48	1050	420	528	414	306	446
52	50-52	1100	440	572	440	338	510
56	54-56	1150	450	600	460	354	556
60	58-60	1200	470	620	490	378	610
64	62-64	1250	500	640	520	400	666
68	66-68	1300	550	680	540	420	732
73	70-73	1350	570	730	580	460	800
78	76-78	1400	610	780	630	490	865
84	81-84	1460	650	840	670	530	940
90	87-90	1540	710	900	720	570	1030
95	92-95	1600	740	950	760	610	1080
102	97-102	1680	790	1020	800	650	1150
107	105-107	1750	840	1070	860	690	1210
114	111-114	1820	880	1140	910	740	1270
122	117-122	1880	930	1220	980	790	1340
132	124-132	1960	1000	1320	1060	860	1440

^Service:

^{We provide drawing design and manufacturing.}

^{Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.}

^{Quick delivery.}

^{Quality products.}

^{Served in marine industry more than twenty years.}

^{Enjoyed excellent reputation from global customers.}
