ROLLER FAIRLEAD

Place Of Origin:China Part: Fairlead, Roller Fairlead Application:Ship Color:Customized Weight:138-4021kg Name:ROLLER FAIRLEAD

+8613355655259

+86551-68997282

johny@ialachina.com

Chat Online Send Message

Products Introduction| Related Products| Inquiry

Products Introduction

ROLLER FAIRLEAD

Description:

^{1> Material selection:}

^{Q235 steel plate}
^{2> Excellent after-sales service:}

^{A> 1 years warranty again the manufacture defect of domestic main ports, offer lifetime consultation on problems occurred.}

^{B> Report on the making process.}

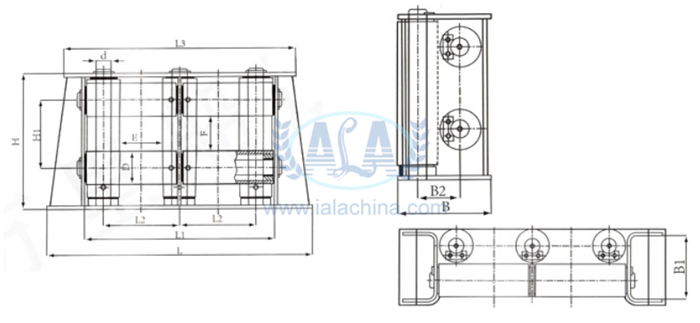

Specification:

German Standard Four Roller Fairlead

Japanese Standard Four Roller Fairlead Type A

Three Roller Fairlead Type A
Steel wire dia.	Nylon wire dia.	E	F	D	d	L	L1	L2	L3	B	B1	B2	H	H1	Weight (kg)
19.5	36	200	257	100	40-0.5	644	416	300	544	238	194	108	508	330	138
22.5	40	200	275	120	50-0.5	728	456	320	608	280	232	128	552	360	212
26	45	200	311	130	55-0.5	776	480	330	646	304	250	138	606	405	273
32	70	220	328	150	65-0.5	880	540	370	730	346	288	158	670	435	401
34.5	80	240	358	160	70-0.5	940	580	400	780	370	308	168	710	470	469
37.5	85	240	383	180	80-0.5	1030	620	420	850	417	345	190	770	510	678
43	95	260	411	200	90-0.5	1136	686	460	936	459	385	210	820	550	866
52	100	260	450	230	100-0.5	1256	746	490	1026	521	445	240	910	605	1197
60.5	-	300	493	260	120-0.5	1430	850	560	1170	590	500	270	1000	670	1741
68	-	320	563	320	150-0.5	1690	990	640	1370	714	620	330	1130	770	2811

Four Roller Fairlead Type BA
Steel wire dia.	Nylon wire dia.	E	F	D	d	L	L1	L2	L3	B	B1	B2	H	H1	Weight (kg)
19.5	36	200	194	100	40-0.5	744	416	300	544	238	194	108	508	294	173
22.5	40	200	196	120	50-0.5	848	456	320	608	280	232	128	552	316	264
26	45	200	228	130	55-0.5	906	480	330	646	304	250	138	606	358	337
32	70	220	230	150	65-0.5	1030	540	370	730	346	288	158	670	380	485
34.5	80	240	250	160	70-0.5	1100	580	400	780	370	308	168	710	410	583
37.5	85	240	265	180	80-0.5	1210	620	420	850	417	345	190	770	445	823
43	95	260	275	200	90-0.5	1336	686	460	936	459	385	210	820	475	1064

Four Roller Fairlead Type BB
Steel wire dia.	Nylon wire dia.	E	F	D	d	L	L1	L2	L3	B	B1	B2	H	H1	Weight (kg)
19.5	36	200	150	100	40-0.5	644	416	300	544	238	194	108	508	250	155
22.5	40	200	150	120	50-0.5	728	456	320	608	280	232	128	552	270	239
26	45	200	180	130	55-0.5	776	480	330	646	304	250	138	606	310	306
32	70	220	180	150	65-0.5	880	540	370	730	346	288	158	670	330	450
34.5	80	240	200	160	70-0.5	940	580	400	780	370	308	168	710	360	576
37.5	85	240	200	180	80-0.5	1030	620	420	850	417	345	190	770	380	756
43	95	260	210	200	90-0.5	1136	686	460	936	459	385	210	820	410	987
52	100	260	220	230	100-0.5	1256	746	490	1026	521	445	240	910	450	1370
60.5	-	300	240	260	120-0.5	1430	850	560	1170	590	500	270	1000	500	2008
68	-	320	250	320	150-0.5	1690	990	640	1370	714	620	330	1130	570	3352

Five Roller Fairlead Type C
Steel wire dia.	Nylon wire dia.	E	F	D	d	L	L1	L2	L3	B	B1	B2	H	H1	Weight (kg)
19.5	36	200	150	100	40-0.5	644	416	300	544	324	194	108	508	250	182
22.5	40	200	150	120	50-0.5	728	456	320	608	384	232	128	552	270	282
26	45	200	180	130	55-0.5	776	480	330	646	415	250	138	606	310	360
32	70	220	180	150	65-0.5	880	540	370	730	475	288	158	670	330	532
34.5	80	240	200	160	70-0.5	940	580	400	780	507	308	168	710	360	675
37.5	85	240	200	180	80-0.5	1030	620	420	850	571	345	190	770	380	895
43	95	260	210	200	90-0.5	1136	686	460	936	632	385	210	820	410	1169
52	100	260	220	230	100-0.5	1256	746	490	1026	723	445	240	910	450	1636
60.5	-	300	240	260	120-0.5	1430	850	560	1170	815	500	270	1000	500	2384
68	-	320	250	320	150-0.5	1690	990	640	1370	997	620	330	1130	570	4021

Nine Roller Fairlead Type E

^Service:

^{We provide drawing design and manufacturing.}

^{Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.}

^{Quick delivery.}

^{Quality products.}

^{Served in marine industry more than twenty years.}

^{Enjoyed excellent reputation from global customers.}
