ROLLER CHOCK
ROLLER CHOCK

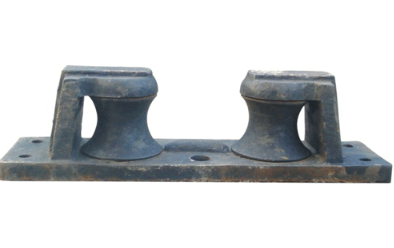

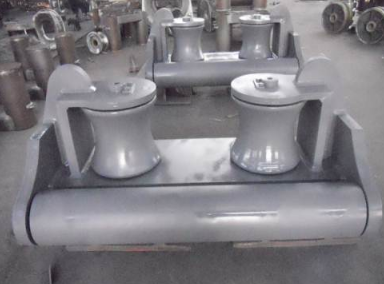

Product showing:
Description:
Place of origin:China
Certification:ABS, BV, LR, DNV, NK, RINA, CCS etc
Nominal size:75-350
Weight (kg):18-1134
Roller exled:22-100

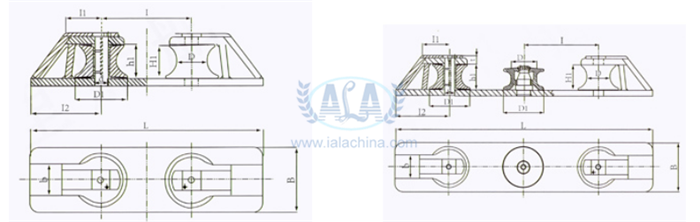

Specification:
Nominal size | Chain`s MBL(kn) | Max.Dia. Of chain | Body | Roller | Roller exle d | Weight | ||||||||||
Steel wire | Synthetic fiber rope | L | B | I | I1 | I2 | b | h1 | D | D1 | H1 | |||||
6x24 | 6x37 | |||||||||||||||
75 | 23.3 | 7.4 | - | 12 | 400 | 150 | 150 | 80 | 125 | 75 | 70 | 75 | 120 | 64 | 22 | 18 |
100 | 52.5 | 11 | - | 18 | 530 | 200 | 200 | 105 | 165 | 100 | 92 | 100 | 160 | 86 | 32 | 41 |
125 | 93.4 | 15 | - | 24 | 650 | 250 | 250 | 126 | 200 | 125 | 108 | 125 | 200 | 102 | 40 | 76 |
150 | 145.8 | 18.5 | - | 30 | 780 | 300 | 300 | 150 | 240 | 150 | 126 | 150 | 240 | 120 | 50 | 132 |
200 | 246.6 | 24 | - | 40 | 1100 | 370 | 400 | 191 | 300 | 200 | 161 | 200 | 310 | 154 | 63 | 246 |
250 | 373.6 | 30 | - | 48 | 1240 | 470 | 500 | 239 | 370 | 240 | 191 | 250 | 400 | 184 | 75 | 498 |
300 | 472.7 | 33.5 | - | 56 | 1480 | 550 | 600 | 284 | 440 | 290 | 231 | 300 | 480 | 224 | 90 | 798 |
350 | 583.5 | 37.5 | 34.5 | 64 | 1690 | 640 | 690 | 322 | 500 | 340 | 251 | 350 | 560 | 244 | 100 | 1134 |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
