REVOLVING FAIRLEAD

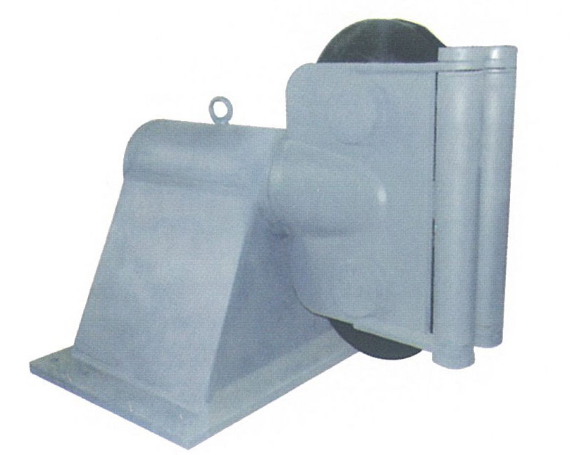

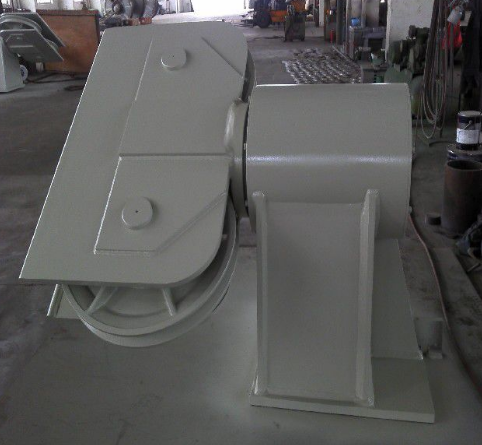

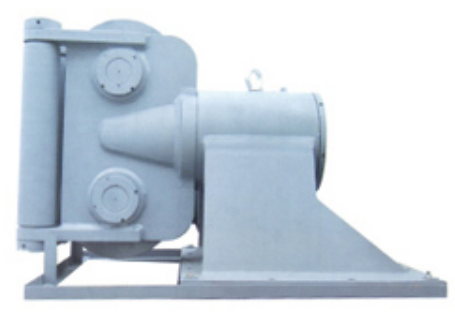

Product showing:

Description:

Fairlead is a device to change the cable direction used for guiding ropes in ship mooring and will not breakdown.

^{Customized service is available, Advanced equipment ,Strong consciousness in controlling quality}

^{Material: Q235B,20# steel,H62 brass.}

^{Surface: Blasting,Epoxy.
Machining facilities :CNC center, CNC lathes, ultrasonic wave cleaning, etc}

^{Good wear and corrosion resistance}

^{Specification:}

Wire Size		Dimensions(mm)									Weight(kg)
(mm)	(Inch)	A	B	C	D	E	F	G	H	I	Weight(kg)
25	1	531	100	275	127	129	129	365	365	679	245
32	1 1/4	667	127	365	150	153	153	660	508	920	555
38	1 1/2	867	178	459	205	205	205	760	760	1280	1808
44	1 3/4	1.111	229	600	254	257	257	1016	914	1568	2260
50	2	1.262	265	650	307	307	307	1200	1068	1810	2950
57	2 1/4	1.433	290	750	340	343	343	1320	1220	2110	4200
64	2 1/2	1.564	320	800	381	383	383	1422	1372	2252	5636

^Features:

^{1. The integrated design of the main cylinder and roller - compact structure, suitful for small ships;
2. The swivel head can rotate freely around the main cylinder- high guiding flexibility, improving the speed of cable guiding and saving a lot of equipment and labor resource;
3. Bushings arranged at the front of the boards, making the wire/rope more smooth and avoiding the friction damage from the ribbed steel to the ropes;
4. High strength, good wear resistance, simple operation with 360° rotation
5. Application: used for ship berthing; also used in the engineering ship, tugboat, oil platform, drilling ships and other types of ship mooring and positioning
6. Withstand the breaking strength at 90°warp on sheave and ± 90° rotation of swivel head}
