PANAMA CHOCK
PANAMA CHOCK
Product showing:
Description:
Panama Chock AC is a popular type of marine Chocks, made from cast steel material, seat and bulwark are made by processing steel sheet. We can manufactures chocks in a wide variety of sizes and styles,also can customized the chock according to your drawing.
1.Material:cast steel ZG200-400,ZG230-450.
2.Paint:Normally we adopt Grey Epoxy Primer or Black Bitumen Paint.
3.Packing:Iron shelf or as per your request.
4.surface in contact with the rope in use been finished smoothly.
Panama Chock AC Certificate: ABS,GL,RINA,DNV, mill certificate available, etc.

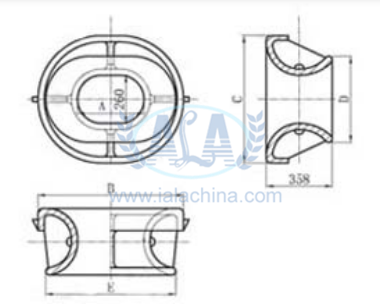

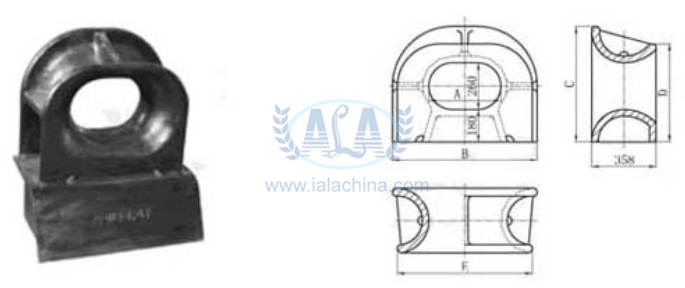

Specification:
Type | A | B | C | D | E |
310 | 310 | 734 | 684 | 462 | 652 |
360 | 360 | 788 | 688 | 464 | 704 |
400 | 400 | 832 | 692 | 470 | 750 |
450 | 450 | 886 | 696 | 474 | 802 |
500 | 500 | 940 | 700 | 478 | 854 |
Quality Assurance:
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
