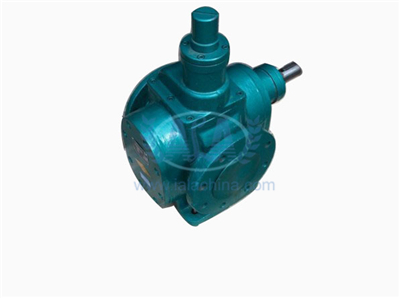

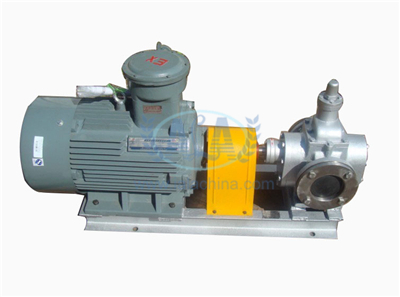

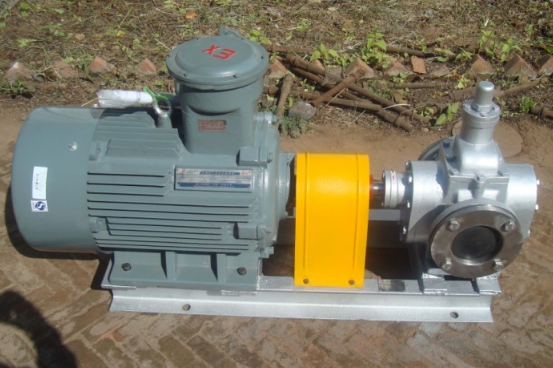

MARINE ELECTRIC GEAR PUMP
MARINE ELECTRIC GEAR PUMP
Product showing:
Description:
1. It can be give performance as transfer pump or booster pump in oil delivery system.
2. It can be used as fuel pump for delivery system, pressurization and injection in fuel supply system
3. It can be applied as hydraulic pump supplying hydraulic power in hydraulic system.
4. It can be applied as lubricating pump in all industry fields.
Specification:
Type | Capacity | Speed | Discharge pressure | NPSHr | Efficiency | Motor | Type | |
m3/h | L/min | r/min | Mpa | m | % | Power(kw) | ||
KCB-18.3 | 1.1 | 18.3 | 14000 | 1.45 | 5 | 44 | 1.5 | Y90L-4 |
2CY-1.1/1.45 | ||||||||
KCB-33.3 | 2 | 33.3 | 1420 | 1.45 | 5 | 44 | 2.2 | Y100L1-4 |
2CY-2/1.45 | ||||||||
KCB-55 | 3.3 | 55 | 1400 | 0.33 | 7 | 41 | 1.5 | Y90L-4 |
2CY-3.3/0.33 | ||||||||
KCB-83.3 | 5 | 83.3 | 1420 | 0.33 | 7 | 43 | 2.2 | Y100L1-4 |
2CY-5/0.33 | ||||||||
KCB-135 | 8 | 135 | 940 | 0.33 | 5 | 46 | 2.2 | Y112M-6 |
2CY-8/0.33 | ||||||||
KCB-200 | 12 | 200 | 1440 | 0.33 | 5 | 46 | 4 | Y112M-4 |
2CY-12/0.33 | ||||||||
KCB-300 | 18 | 300 | 960 | 0.36 | 5 | 42 | 5.5 | Y132M2-6 |
2CY-18/0.36 | ||||||||
KCB-483.3 | 29 | 483.3 | 1440 | 0.36 | 5.5 | 42 | 11 | Y160M-4 |
2CY-29/0.36 | ||||||||
KCB-633 | 38 | 633 | 970 | 0.28 | 6 | 43 | 11 | Y160L-6 |
2CY-38/0.28 | ||||||||
KCB-960 | 58 | 960 | 1470 | 0.28 | 6.5 | 43 | 18.5 | Y180M-4 |
2CY-58/0.28 | ||||||||
KCB-1200 | 72 | 1200 | 740 | 0.6 | 7 | 43 | 37 | Y280S-8 |
KCB-1600 | 95 | 1600 | 980 | 45 | Y280S-6 | |||
KCB-1800 | 112 | 1800 | 740 | 0.6 | 7.5 | 43 | 55 | Y315S-8 |
KCB-2500 | 150 | 2500 | 985 | 75 | Y315S-6 | |||
KCB-2850 | 170 | 2850 | 740 | 0.6 | 8 | 44 | 90 | Y315L1-8 |
KCB-3800 | 230 | 3800 | 989 | 110 | Y315L1-6 | |||
KCB-4100 | 245 | 4100 | 743 | 0.6 | 8 | 44 | 132 | Y355M1-8 |
KCB-5400 | 325 | 5400 | 989 | 160 | Y355M1-6 | |||
KCB-5600 | 330 | 5600 | 744 | 0.6 | 8 | 44 | 160 | Y355M2-8 |
KCB-7600 | 460 | 7600 | 989 | 200 | Y355M3-6 | |||
KCB-7000 | 420 | 7000 | 744 | 0.6 | 8 | 44 | 185 | Y355L1-8 |
KCB-9600 | 570 | 9600 | 989 | 250 | Y355L2-6 |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
