MANHOLE COVER
MANHOLE COVER
Description:
1) Product information:
Manhole Covers are manufactured for construction and public use. Manhole Covers shall be smooth and free from sand holes, blow holes, distortion or any other defects
2) Material
a) Ductile Iron GGG500-7 & 400-12
b) Grey Iron GG20
3) Designs .
a) EN124 A15, B125, C250, D400, E600 and F900
b) A60005 for casting design
c) Major standards designs available
d) As per customers' drawings or samples
4) Process
c) Molding boards
d) Green sand with hand molding
5) Coating
a) Cold applied black bitumen
b) Without coating
c) Coating as per customers' requirement
10) Different accessories are available
Specification:

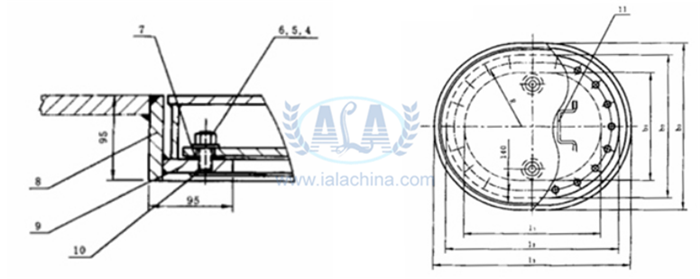

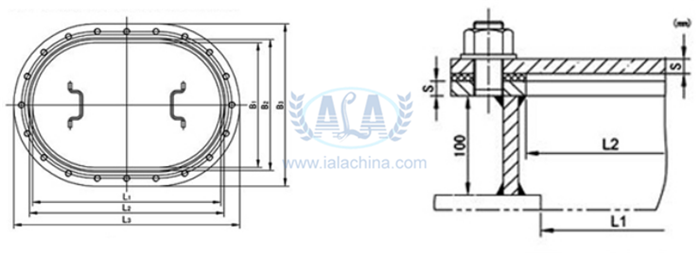

Model | Nominal Size | L1 | L2 | L3 | B1 | B2 | B3 | S | Fastener | Weight | |
Diameter | Quentity | ||||||||||
A | 450x350 | 450 | 470 | 570 | 350 | 370 | 470 | 4 | M20 | 16 | 23.2 |
6 | 30.8 | ||||||||||
8 | 36.9 | ||||||||||
10 | 45.8 | ||||||||||
600x400 | 600 | 620 | 780 | 400 | 420 | 520 | 6 | 20 | 48.8 | ||
8 | 59.2 | ||||||||||
10 | 69.3 | ||||||||||
12 | 79.6 | ||||||||||
800x600 | 800 | 820 | 920 | 600 | 620 | 720 | 8 | 26 | 52.4 | ||
10 | 65.8 | ||||||||||
12 | 78.2 | ||||||||||
14 | 90.2 | ||||||||||
Stub is stainless steel SUS304, nut material could be steel, brass, stainless steel, as user`s option | |||||||||||

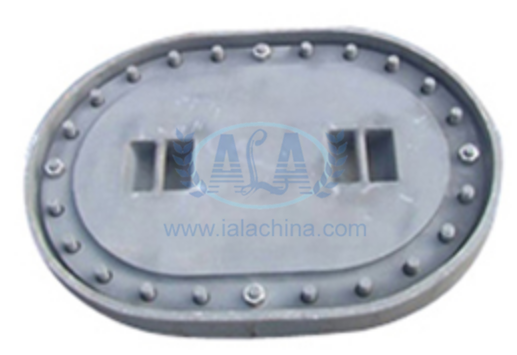

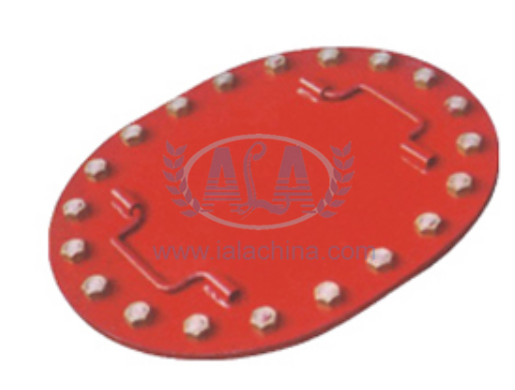

Manhole cover(standard CB/T19-2001) is used for the ship watertight & oil tight. There are type A,B,C,D. The shape can be round or oval. Steel cover, stainless steel bolts & nuts. CCS,ABS,BV,DNV,RINA,NK,GL,LR certificate can be supplied. |

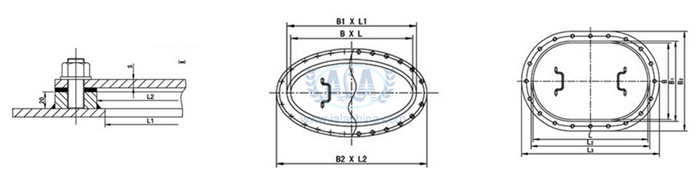

Model | Nominal Size | L1 | L2 | L3 | B1 | B2 | B3 | S | Fastener | Weight | |
Diameter | Quentity | ||||||||||
B1 | 450x350 | 450 | 470 | 570 | 350 | 370 | 470 | 4 | M20 | 16 | 28.9 |
6 | 33.8 | ||||||||||
8 | 37.2 | ||||||||||
10 | 41.2 | ||||||||||
600x400 | 600 | 620 | 720 | 400 | 420 | 520 | 8 | 20 | 49.5 | ||
10 | 55.6 | ||||||||||
12 | 61.2 | ||||||||||
14 | 67.6 | ||||||||||
800x600 | 800 | 820 | 920 | 600 | 620 | 720 | 12 | 26 | 67.2 | ||
14 | 75.2 | ||||||||||
16 | 82.8 | ||||||||||
18 | 89.9 | ||||||||||
B2 | 800x400 | 800 | 830 | 930 | 400 | 430 | 530 | 12 | 24 | 56.8 | |
14 | 63.2 | ||||||||||
16 | 69.2 | ||||||||||
18 | 76.2 | ||||||||||
Stub is stainless steel SUS304, nut material could be steel, brass, stainless steel, as user`s option. | |||||||||||

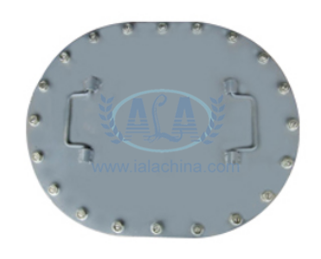

Manhole cover(standard CB/T19-2001) is used for the ship watertight & oil tight. There are type A,B,C,D. The shape can be round or oval. Steel cover, stainless steel bolts & nuts. CCS,ABS,BV,DNV,RINA,NK,GL,LR certificate can be supplied. |

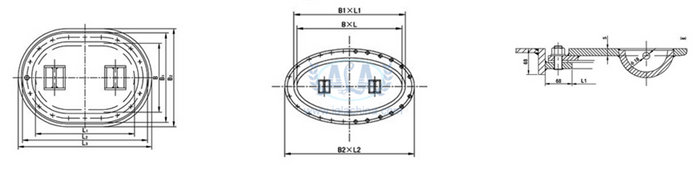

Model | Nominal Size | L1 | L2 | B1 | B2 | S | Fastener | Weight | |
Diameter | Quentity | ||||||||
C | 450x350 | 470 | 650 | 470 | 550 | 10 | M20 | 16 | 116.6 |
12 | 121.6 | ||||||||
14 | 128.6 | ||||||||
600x400 | 720 | 800 | 520 | 600 | 10 | 20 | 136 | ||
12 | 142.2 | ||||||||
14 | 149.5 | ||||||||
800x600 | 920 | 1000 | 720 | 800 | 12 | 26 | 171.5 | ||
14 | 182.6 | ||||||||
18 | 206.8 | ||||||||
800x400 | 930 | 1010 | 530 | 610 | 12 | 24 | 102.8 | ||
14 | 118.2 | ||||||||
18 | 146.2 | ||||||||

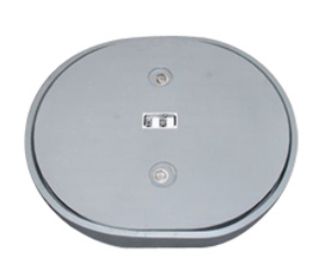

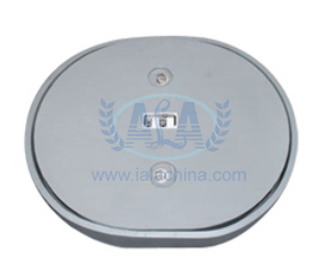

Manhole cover(standard CB/T19-2001) is used for the ship watertight & oil tight. There are type A,B,C,D. The shape can be round or oval. Steel cover, stainless steel bolts & nuts. CCS,ABS,BV,DNV,RINA,NK,GL,LR certificate can be supplied. |
Model | Nominal Size | L1 | L2 | L3 | B1 | B2 | B3 | S | Fastener | Weight | |
Diameter | Quentity | ||||||||||
D | 450x350 | 450 | 570 | 620 | 350 | 470 | 520 | 14 | M20 | 16 | 73.1 |
16 | 81.6 | ||||||||||
18 | 90.2 | ||||||||||
600x400 | 600 | 720 | 770 | 400 | 520 | 570 | 14 | 20 | 83.6 | ||
16 | 88.8 | ||||||||||
18 | 94.8 | ||||||||||
800x600 | 800 | 920 | 970 | 600 | 720 | 770 | 14 | 26 | 108.4 | ||
18 | 120.6 | ||||||||||
20 | 149.8 | ||||||||||
800x400 | 800 | 930 | 980 | 400 | 530 | 580 | 14 | 24 | 89.4 | ||
16 | 102.5 | ||||||||||
20 | 127.8 | ||||||||||
Stub is stainless steel SUS304, nut material could be steel, brass, stainless steel, as user`s option | |||||||||||

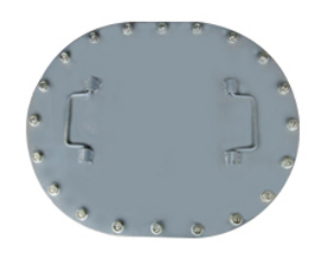

Manhole cover(standard CB/T19-2001) is used for the ship watertight & oil tight. There are type A,B,C,D. The shape can be round or oval. Steel cover, stainless steel bolts & nuts. CCS,ABS,BV,DNV,RINA,NK,GL,LR certificate can be supplied. |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
