HYDRAULIC SINGLE WINDLASS
HYDRAULIC SINGLE WINDLASS

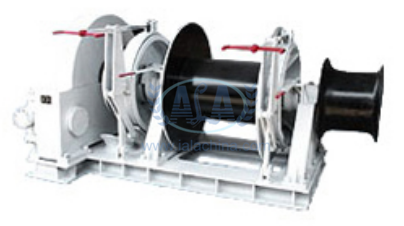

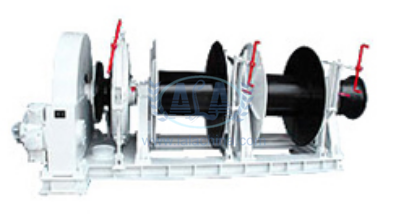

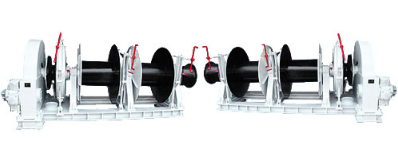

Product showing:
Description:
The electric winch is a kind of large deck machinery used in the ship. It is used to pull up or throw ropes. It is usually mounted on the main deck of the stem or stern of the ship for mooring ropes.
The electric winch mainly consists of base, support, drums, brakes, loose drums, gearboxes, electronic control systems, etc. Its type is decided by the size of the ship and mooring force.
The mooring winch can run effectively when the ship is berthing in the sea or by the bank. It has many functions such as to drift, support and locate in the process of loading and unloading. Its constant tension adjust deviation generated by compensation vibration. The fact that the mooring winch fixed on the bank is used when the anchoring ships are loading and unloading is a excellent application example of constant tension adjustment. It is widely used for the location with heavy labor and great traction. The motor of the electric winch with single drum drives the drum through the reducer. The brake is mounted between the motor and the input axis of the reducer. The winches with double drums and multi-drums can meet the requirements of lifting, pull and slewing, etc. The winch with below 10t rated load is usually designed to electric form.
Specification:
Hydraulic Single Windlass (two&two drum) |
Chain drum | Hawser drum | Motor power | ||||
Chain Dia | Load | Speed | Load | Speed | Rope Size | |
40 | 68 | 12 | 50 | ≥15 | 65x150 | 30 |
42 | 75 | 12 | 50 | ≥15 | 65x150 | 30 |
44 | 82.3 | 12 | 50 | ≥15 | 65x150 | 30 |
46 | 89.9 | 12 | 50 | ≥15 | 80x150 | 37 |
48 | 97.9 | 12 | 50 | ≥15 | 80x150 | 37 |
50 | 103.3 | 12 | 50 | ≥15 | 80x150 | 37 |
52 | 114.9 | 12 | 80 | ≥15 | 80x180 | 45 |
54 | 123.3 | 12 | 80 | ≥15 | 80x180 | 45 |
56 | 133.3 | 12 | 80 | ≥15 | 80x180 | 55 |
58 | 143 | 12 | 80 | ≥15 | 80x200 | 55 |
60 | 153 | 12 | 80 | ≥15 | 80x200 | 55 |
36 | 61.6 | 12 | 50 | ≥15 | 65x150 | 30 |
38 | 68.9 | 12 | 50 | ≥15 | 65x150 | 30 |
40 | 76 | 12 | 50 | ≥15 | 65x150 | 30 |
42 | 83.8 | 12 | 50 | ≥15 | 80x150 | 37 |
44 | 92 | 12 | 50 | ≥15 | 80x150 | 37 |
46 | 100.5 | 12 | 50 | ≥15 | 80x150 | 37 |
48 | 109.4 | 12 | 100 | ≥15 | 80x180 | 45 |
50 | 118.8 | 12 | 100 | ≥15 | 80x180 | 45 |
52 | 128.4 | 12 | 100 | ≥15 | 80x180 | 55 |
54 | 138.5 | 12 | 80 | ≥15 | 80x200 | 55 |
56 | 149 | 12 | 80 | ≥15 | 80x200 | 55 |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
