HYDRAULIC COMBINED MOORING WINDLASS
HYDRAULIC COMBINED MOORING WINDLASS

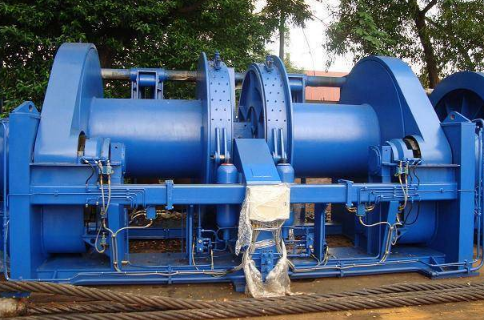

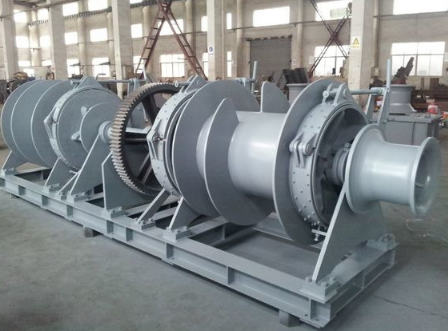

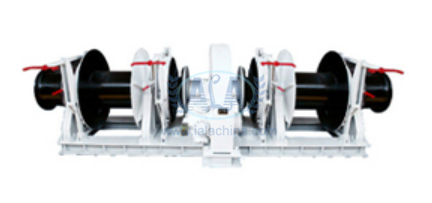

Product showing:
Description:
1,Name: Marine Hydraulic Combined Mooring Anchor Winch
2,Driven: Electric / Hydraulic / Diesel / Manual
3,Loading capacity:0.5~200 ton or customized design;
4,Wire rope capacity:20~3600m or customzied design;
5,Working speed:5~20 m/min or customized design;
6,Power supply:220~690V,50/60HZ,three phase or customized design.
Specification:
Chain drum | Hawser drum | Motor power | ||||
Chain Dia | Load | Speed | Load | Speed | Rope Size | |
30 | 38.3 | 12 | 30 | 12 | 50x150 | 18.5 |
32 | 43.5 | 12 | 30 | 12 | 50x150 | 18.5 |
34 | 49.1 | 12 | 30 | 12 | 50x150 | 22 |
36 | 55.1 | 12 | 30 | 12 | 50x180 | 30 |
38 | 61.4 | 12 | 30 | 12 | 65x150 | 30 |
40 | 68 | 12 | 50 | 15 | 65x150 | 30 |
42 | 75 | 12 | 50 | 15 | 65x150 | 30 |
44 | 82.3 | 12 | 50 | 15 | 80x150 | 30 |
46 | 89.9 | 9 | 50 | 10 | 80x150 | 37 |
48 | 97.9 | 9 | 50 | 10 | 80x150 | 37 |
50 | 103.3 | 9 | 50 | 10 | 80x150 | 37 |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
