DIN STANDARD BOLLARD
DIN STANDARD BOLLARD
Product showing:
Description:

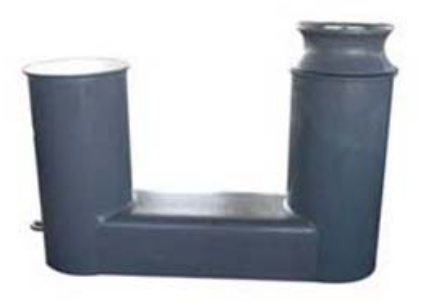

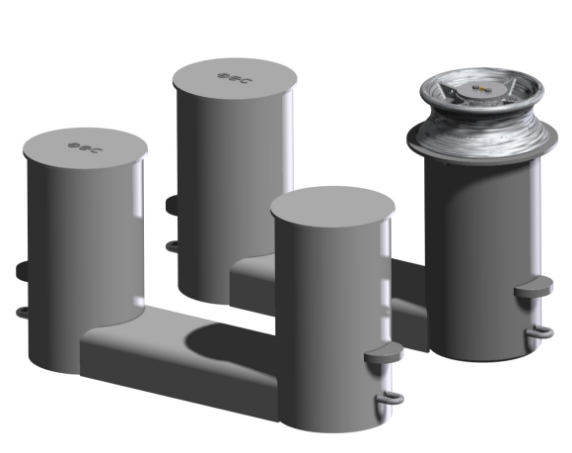

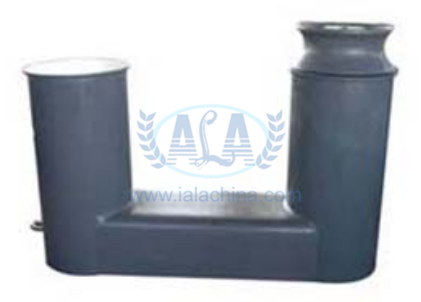

This double bollard is produced according to the DIN 82607 standard. The double bollard is provided with two ridges to prevent the rope from moving. A stopper lug has been fitted for application of a rope stopper. The tubes penetrate the baseplate and reinforcement plates have been fitted in the base of the bollard. Therefore, the foundation construction of bollards does not have to penetrate the deck.
Specification:

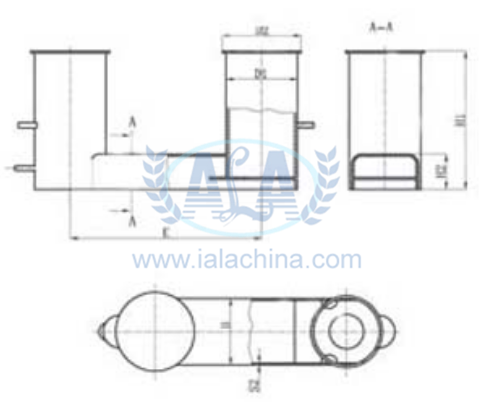

Size | Rated towing pill(KN) | TUBE D1 | B | D2 | E | H1 | H2 | S2 | A |
D1 | 10 | 139.9*6.3 | 130 | 160 | 430 | 370 | 105 | 5 | 4 |
D2 | 20 | 219.1*8 | 180 | 242 | 570 | 475 | 115 | 6 | 4 |
D3 | 32 | 273*10 | 250 | 300 | 700 | 570 | 135 | 8 | 5 |
D5 | 50 | 323.9*10 | 300 | 355 | 880 | 670 | 150 | 8 | 6 |
D8 | 60 | 355.6*14.2 | 330 | 390 | 1050 | 780 | 175 | 10 | 8 |
D12 | 120 | 457*16 | 420 | 490 | 1200 | 860 | 195 | 16 | 12 |
D20 | 200 | 508*17.5 | 470 | 545 | 1350 | 970 | 230 | 16 | |
D32 | 320 | 559*20 | 530 | 600 | 1400 | 1000 | 270 | 16 |
Package:
We usually use plywood package transportation. The surface of the steering will be covered with a palstic film. So it can be proteted well.
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
