CLEAT FAIRLEAD WITH SINGLE ROLLER
CLEAT FAIRLEAD WITH SINGLE ROLLER

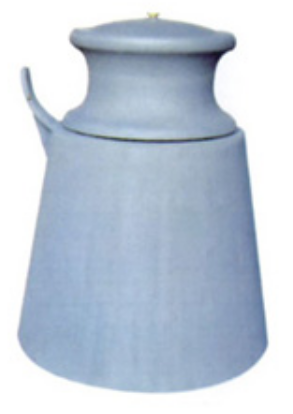

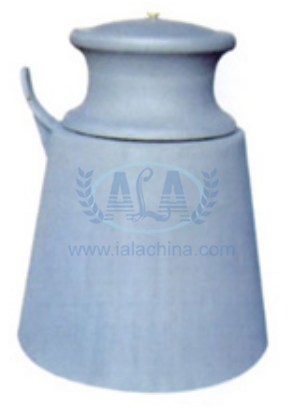

Product showing:
Description:
New Maritime Ship Steel Mooring roller fairlead have high quality and competitive price. we are dedicated to provide excellent product quality at reasonable price and on time delivery. Our products are manufactured to the highest quality standards and approved by the major marine classification bodies such as LR,ABS,GL,NK, CCS,DNV,BV, EC etc.
Fairlead is a device to change the cable direction used for guiding ropes in ship mooring and will not breakdown.
Specification:

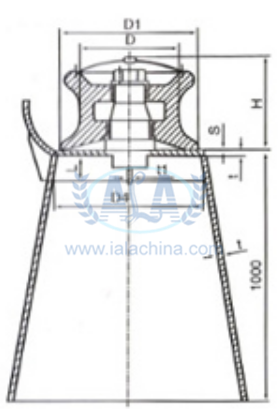

Cleat Fairlead With Single Roller Type A | ||||||||||||||
Dia of roller | Appropriate cable dia | Size | Weight kg | |||||||||||
steel wire strength | Hemp rope | Synthetic fiber rope | D1 | D4 | H | H1 | L | S | t | t1 | Guide roller | Stand | ||
D | 6x24 | 6x37 | ||||||||||||
100 | 11 | 11 | 40 | 28 | 160 | 176 | 128 | 35 | 60 | 3 | 8 | 6 | 9.9 | 63.9 |
150 | 16-18 | 14-16 | 45 | 32 | 240 | 264 | 211 | 40 | 75 | 3 | 12 | 8 | 33.8 | 129 |
200 | 22 | 20 | 55 | 40 | 310 | 338 | 251 | 50 | 85 | 3 | 14 | 10 | 68 | 178 |
250 | 24 | 24 | 65 | 45 | 380 | 408 | 298 | 60 | 100 | 4 | 14 | 10 | 114 | 207 |
300 | 30 | 28 | 70 | 50 | 440 | 472 | 321 | 60 | 100 | 4 | 16 | 14 | 168 | 265 |
350 | 38 | 34 | 75 | 55 | 500 | 536 | 346 | 65 | 100 | 4 | 18 | 14 | 248 | 332 |
400 | 40-42 | 38-40 | 85 | 65 | 560 | 600 | 371 | 70 | 100 | 5 | 20 | 16 | 355 | 401.3 |
450 | 44 | 42-44 | - | 80 | 620 | 660 | 394 | 90 | 120 | 5 | 20 | 16 | 452 | 445.4 |
Cleat Fairlead With Single Roller Type B | ||||||||||||||
Dia of roller | Appropriate cable dia | Size | Weight kg | |||||||||||
steel wire strength | Hemp rope | Synthetic fiber rope | D1 | D4 | H | H1 | L | S | t | t1 | Guide roller | Stand | ||
D | 6x24 | 6x37 | ||||||||||||
150 | 16-18 | 14-16 | 45 | 32 | 240 | 264 | 154 | 30 | 75 | 5 | 12 | 8 | 24.8 | 129 |
200 | 22 | 20 | 55 | 40 | 310 | 338 | 186 | 30 | 85 | 5 | 14 | 10 | 49.3 | 178 |
250 | 24 | 24 | 65 | 45 | 380 | 408 | 230 | 35 | 100 | 6 | 14 | 10 | 92 | 207 |
300 | 30 | 28 | 70 | 50 | 440 | 472 | 255 | 35 | 100 | 7 | 16 | 12 | 127 | 265 |
350 | 38 | 34 | 75 | 55 | 500 | 536 | 271 | 35 | 100 | 7 | 18 | 14 | 168 | 332 |
400 | 40-42 | 38-40 | 85 | 65 | 560 | 600 | 307 | 40 | 100 | 7 | 20 | 16 | 252.5 | 401.3 |
450 | 44 | 42-44 | - | 80 | 630 | 670 | 316 | 40 | 120 | 7 | 20 | 16 | 310 | 452 |
Application:
The fairleads are widely used for small boats and different vessels, such as container vessel, tankers, bulk carriers, tug, dry cargo vessels, etc
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
-
