BOLLARD TYPE A
BOLLARD TYPE A

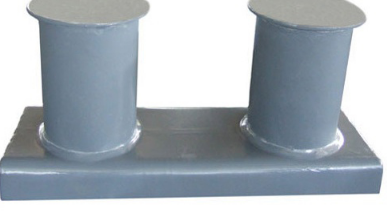

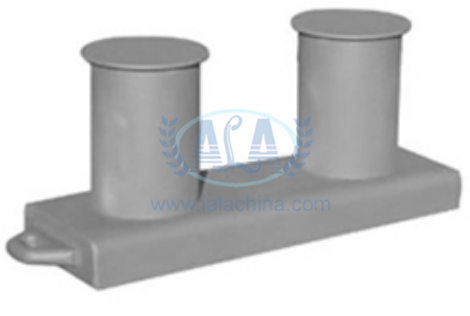

Product showing:
Description:
It is a post used on ship's deck or quay. It is a simple and cost-effective way to fulfill mooring requirements and safely secure vessels alongside jetties, berths, wharves and dolphins in ports and harbors. It is welded by qualified steel tubes with plates.
Different types and sizes of the bollards are available, including the single cruciform bollard, double cruciform bollard, NS2584 type bollard, DIN 82607 type bollard, JIS F-2001 type bollard, and other customized type bollard according to the requirement of clients.
Features:
A. High quality SG iron as standard
B. Strong and durable designs
C. Very low maintenance
D. Large line angles possible
E. Standard and custom anchors available
F. Specification and Type
G. Bollards are manufactured in a wide range of shapes, sizes and capabilities. In general, the type bollard should alwayas well as the general size ( i.e. height, head size, base size, etc) and load capabilitie.

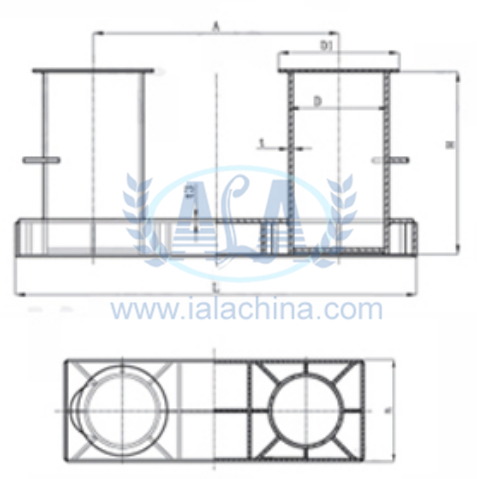

Specification:
Nominal dia | D | D1 | t | A | B | L | H | t3 | Weight |
100 | 114 | 145 | 10 | 250 | 165 | 445 | 196 | 6 | 19 |
125 | 140 | 180 | 10 | 315 | 195 | 540 | 246 | 6 | 29 |
160 | 168 | 210 | 10 | 400 | 225 | 670 | 316 | 6 | 45 |
200 | 219 | 270 | 10 | 500 | 290 | 860 | 378 | 8 | 80 |
250 | 273 | 335 | 11 | 630 | 360 | 1065 | 470 | 10 | 141 |
315 | 325 | 390 | 15 | 800 | 430 | 1300 | 597 | 12 | 264 |
355 | 351 | 420 | 17 | 890 | 480 | 1475 | 663 | 13 | 358 |
400 | 402 | 480 | 18 | 1000 | 550 | 1630 | 749 | 14 | 499 |
450 | 450 | 545 | 19 | 1130 | 620 | 1840 | 841 | 16 | 680 |
500 | 508 | 610 | 20 | 1250 | 690 | 2040 | 928 | 18 | 911 |
560 | 560 | 670 | 22 | 1380 | 750 | 2240 | 1025 | 20 | 1208 |
630 | 610 | 730 | 24 | 1570 | 820 | 2510 | 1152 | 22 | 1601 |
710 | 712 | 840 | 25 | 1750 | 960 | 2840 | 1294 | 24 | 2252 |
800 | 813 | 940 | 26 | 2000 | 1100 | 3240 | 1480 | 25 | 3071 |
Packaging & Shipping
1. Wooden Csse;
2. Iron Frame;
For different shipping methods and destinations, we will suggest different packaging. If you have any requirement for the packaging, please let me know during enquiry.
-
