A TYPE CHAIN LOCKER RING PLATE

Material:Steel Surface:Epoxy Paint Part: Mooring Equipment Components:Eye Ring, Base Plate Weight:3.02-59.2kg Name:A TYPE CHAIN LOCKER RING PLATE

+8613355655259

+86551-68997282

johny@ialachina.com

Chat Online Send Message

Products Introduction| Related Products| Inquiry

Products Introduction

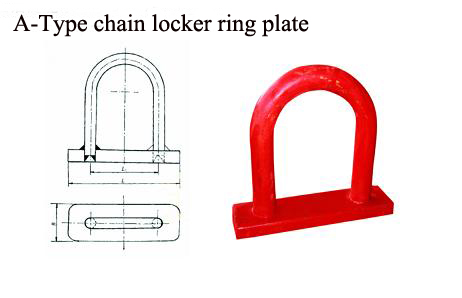

A TYPE CHAIN LOCKER RING PLATE

Description:

^Material:	^Steel
^{Componets :}	^{Eye ring, base plate}
^{Surface :}	^{Epoxy paint}
^{Weight :}	^3.0-59.2kg
^{Part :}	^{Mooring equipment}
^Certificate:	^{LR, BV, ABS, GL,NK, CCS}
^{Anchor chain diameter :}	^13-43mm
^Standard:	^CB807-75

Specification:

Chain Dia.	L	L1	B	Weight(kg)
13-15	200	120	65	3
17-19	240	145	70	5.85
22-25	330	200	90	11.6
28-31	410	250	100	20.2
34-37	500	305	130	31.5
40-43	600	355	150	59

^Service:

^{We provide drawing design and manufacturing.}

^{Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.}

^{Quick delivery.}

^{Quality products.}

^{Served in marine industry more than twenty years.}

^{Enjoyed excellent reputation from global customers.}
