AF-38 MARINE SWIVEL ANCHOR FAIRLEAD
Material:Steel
Surface:Blasting, Epoxy
Type:Swivel Anchor Fairlead
Paint:Grey, Black, Red Etc
Mass Weight:420-2900kg
Name:AF-38 MARINE SWIVEL ANCHOR FAIRLEAD
+8613355655259
+86551-68997282
Products Introduction
AF-38 MARINE SWIVEL ANCHOR FAIRLEAD

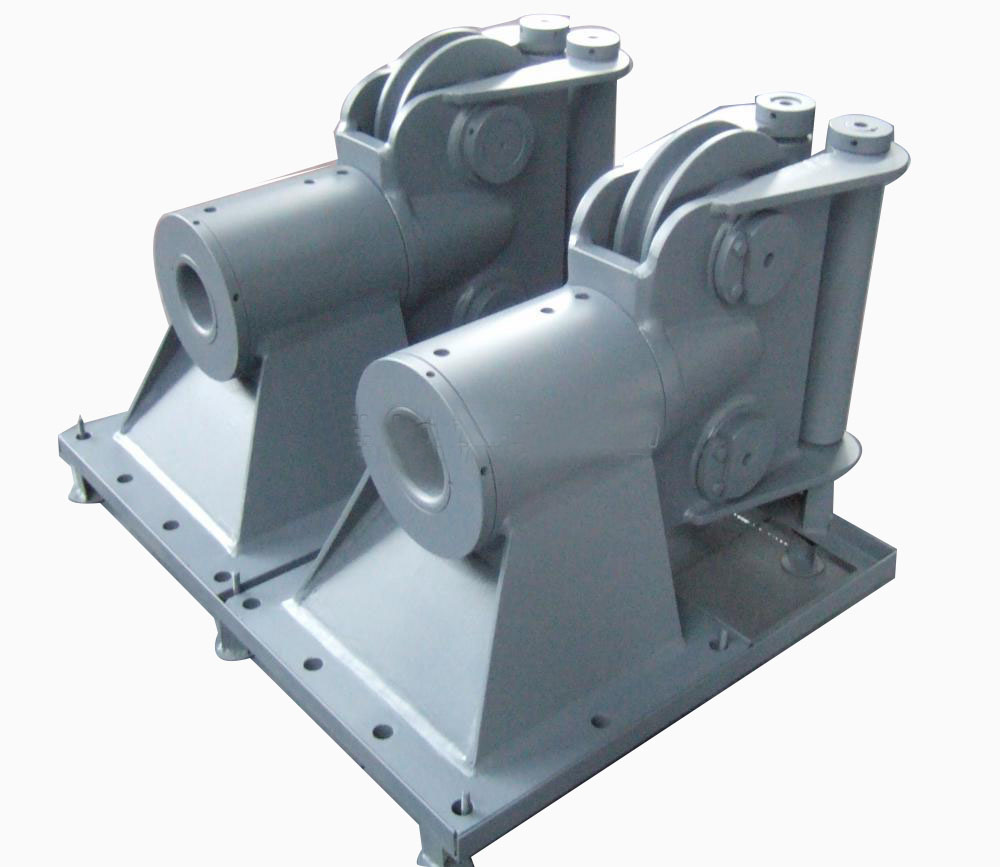

Product showing:
Description:
Product: | AF-38 Marine Mooring Swivel Anchor Fairlead |
Model no.: | EMF-05 |
Material: | Steel |
Surface: | Blasting, epoxy |
Paint : | Grey, black, red etc |
Weight : | 420kg to 2900kg |
Standard : | AF-38 |
Certificate: | BV, ABS, CCS,LR, DNV, mill certificate |
Type: | Swivel anchor fairlead |
Application.: | Change the cable direction for guiding ropes in ship mooring |

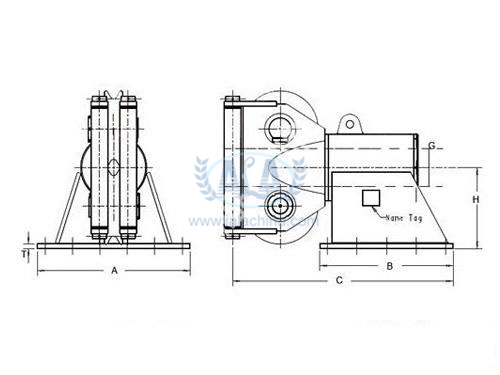

Specification:
Wire Rope Dia. | Sheave Dia.(mm) | Dimension(mm) | Mass Weight | ||||||
mm | inch | A | B | C | T | H | G | kg | |
25 | 1" | 254 | 559 | 356 | 679 | 20 | 292 | 90 | 420 |
32 | 1-1/4" | 305 | 711 | 508 | 889 | 30 | 343 | 100 | 720 |
38 | 1-1/2" | 406 | 762 | 762 | 1296 | 40 | 459 | 150 | 1080 |
44 | 1-3/4" | 508 | 1067 | 914 | 1568 | 50 | 546 | 190 | 2260 |
50 | 2 | 610 | 1219 | 1067 | 1893 | 50 | 648 | 220 | 2480 |
64 | 2-1/2" | 762 | 1372 | 1219 | 2127 | 60 | 800 | 250 | 2900 |
Feature | Reliable quality. |
Fast delivery time. | |
Durable, long lifetime. | |
Customized service is available. |
Service:
We provide drawing design and manufacturing.
Supplied products are anchor, anchor chain, buoy, outfittings, deck equipment etc.
Quick delivery.
Quality products.
Served in marine industry more than twenty years.
Enjoyed excellent reputation from global customers.
